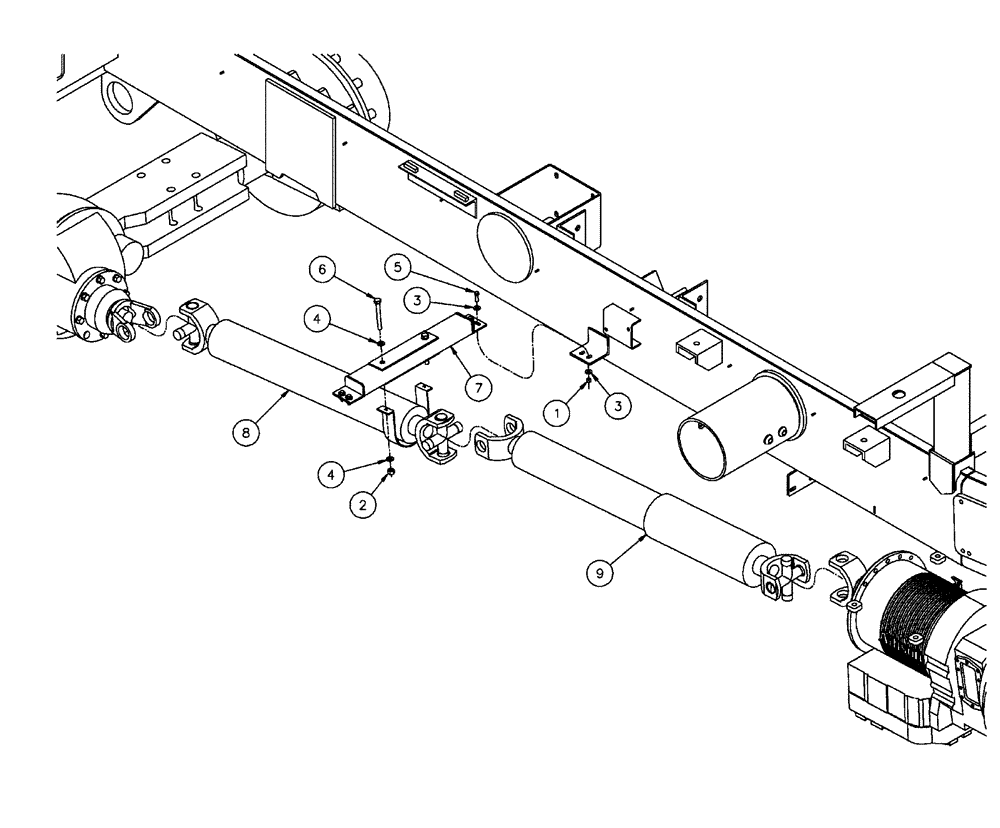

Запчасти Case IH FLX3300B (03-003) - DRIVELINE GROUP (03) - TRANSMISSION

1

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

2

100038

NUT,M12 x 1.75, Cl 8

2шт.

3

BN300499

WASHER,M10, 10.9

8шт.

4

BN300500

WASHER,M12, 10.9

4шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

6

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

7

BN303064

HANGER

Driveline, 3176

1шт.

7a

BN303065

TUBE

Driveline Bracket

1шт.

Service Parts For Ref. 7

1шт.

7b

BN303066

BRACKET, SUPPORTING

Mount, Driveline Bracket

2шт.

Service Parts For Ref. 7

1шт.

7c

BN303067

BRACKET, SUPPORTING

Doubler, Driveline Bracket

2шт.

Service Parts For Ref. 7

1шт.

7d

BN313908

DRIVE SHAFT

Solid With Hanger

1шт.

Service Parts For Ref. 7

1шт.

7e

BN2294170

U-JOINT SPIDER

5-280X (1710)

1шт.

Service Parts For Ref. 7

1шт.

7f

BN307686

HANGER

Bearing (1710 HD)

1шт.

Service Parts For Ref. 7

1шт.

7g

BN307687

YOKE

End (1710 HD)

1шт.

Service Parts For Ref. 7

1шт.

7h

BN307688

WASHER

1шт.

Service Parts For Ref. 7

1шт.

7j

BN307689

NUT

(1710 HD)

1шт.

Service Parts For Ref. 7

1шт.

7k

BN313908

DRIVE SHAFT

Solid With Hanger

1шт.

Service Parts For Ref. 7

1шт.

9

BN302123

DRIVEN SHAFT

Driveline, 1710 Head Slip

1шт.
