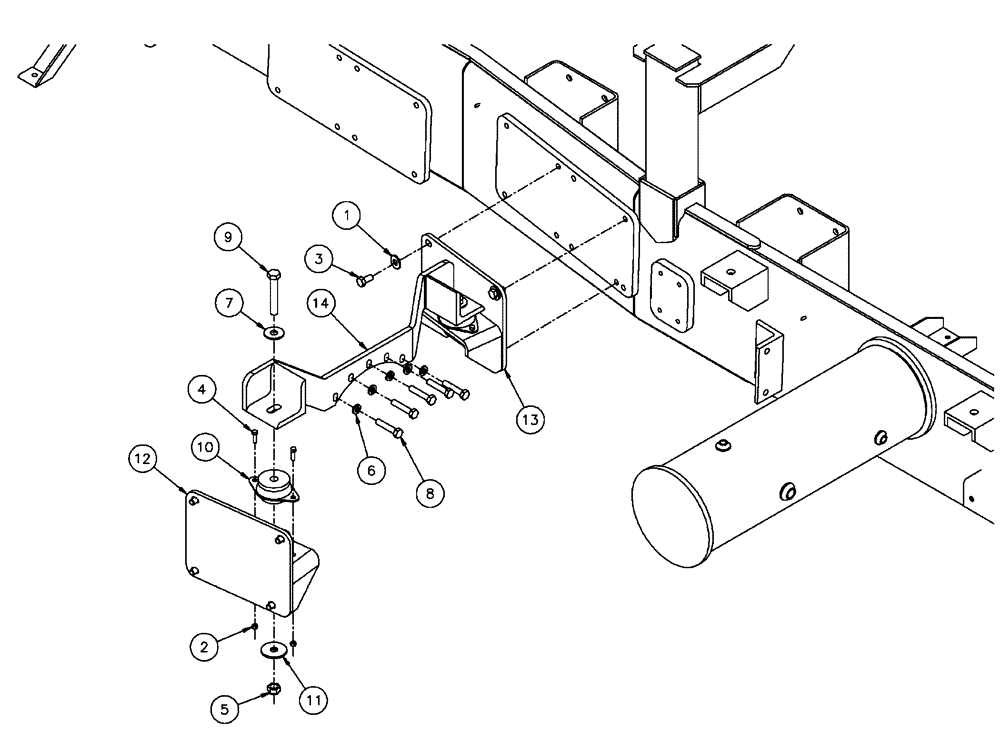

Запчасти Case IH FLX3300B (03-002) - TRANSMISSION MOUNTING (03) - TRANSMISSION

1

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

2

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

3

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

8шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

5

86512555

NUT,M16 x 2, Cl 10

2шт.

6

BN300500

WASHER,M12, 10.9

5шт.

7

BN50155

WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk

5/8", G5

2шт.

8

9706693

BOLT,M12 x 60mm, Cl 8.8

5шт.

9

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

2шт.

10

BN306728

ENGINE MOUNT

2шт.

11

BN308164

WASHER

Rebound

2шт.

12

BN314619

MOUNTING PLATE

Transmission/Frame, RS

1шт.

13

BN314620

MOUNTING PLATE

Transmission/Frame, CS

1шт.

14

BN317687

MOUNTING PLATE

Weldment, Rear Transmission Mount

1шт.
