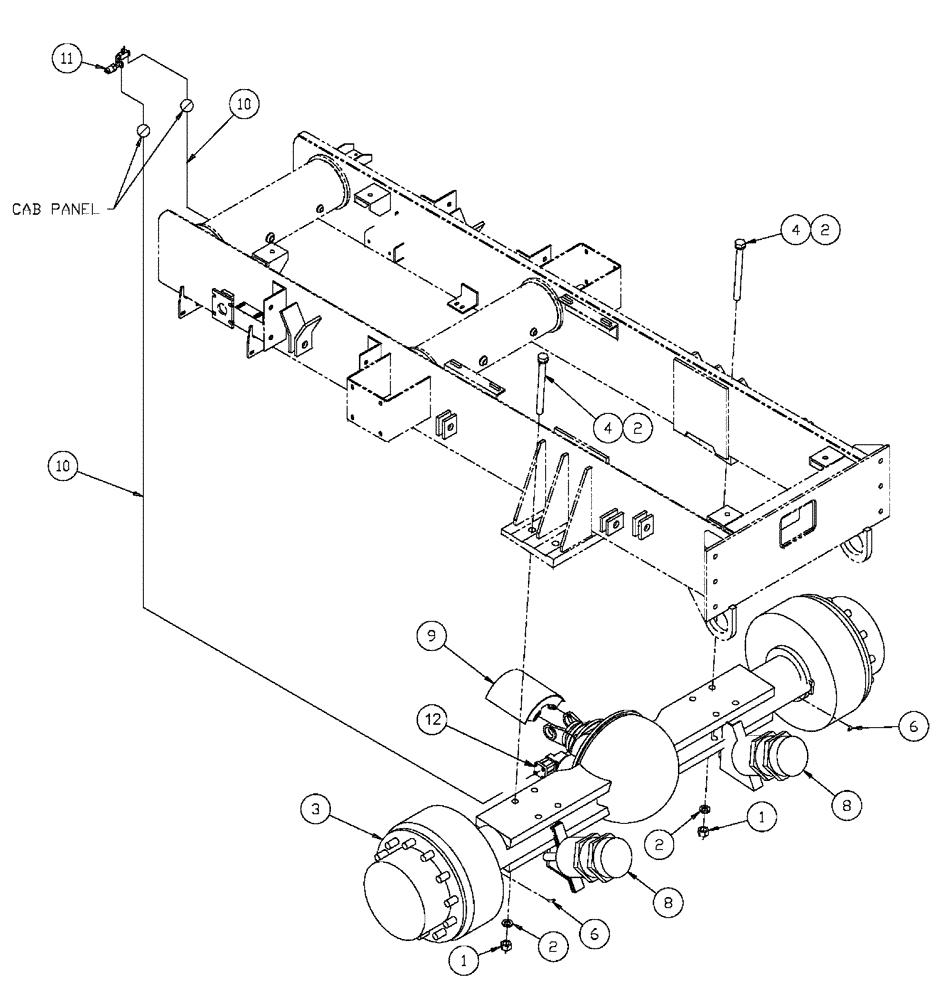

Запчасти Case IH FLX3300B (04-003) - REAR AXLE GROUP Frame & Suspension

1

BN1470411F

LOCK NUT

1"-14 Flex

8шт.

2

BN2298333

WASHER

Hardened, 1 WA1772

16шт.

3

BN323371

PRC674, 16.56/23.10

1шт.

4

BN319750

BOLT

1-14 X 10, HH, Grade 8

8шт.

6

BN41288

LUBE NIPPLE

Zerk-1/8-27 X 90 Degree

2шт.

8

343361A1

Brake Chamber, Assembly

2шт.

8a

BN2290528

FITTING

2103-6-6

2шт.

Parts of Brake Chamber, Assembly., P/N 343361A1

1шт.

8b

BN2399367

BRAKE

MGM Brake #3436078

1шт.

Parts of Brake Chamber, Assembly., P/N 343361A1

1шт.

9

BN7136365

GUARD

Weldment, U-Joint

1шт.

10

BN7138053

Assembly, 2Sp Shift Comps.

1шт.

10a

BN2290181

FITTING

0103-4-4

2шт.

Parts of Assembly, 2Sp Shift Comp., P/N BN7138053

1шт.

10b

BN2295095

TEE

012T-4-4

1шт.

Parts of Assembly, 2Sp Shift Comp., P/N BN7138053

1шт.

11

BN7148162

Assembly, 2-Speed Shift Circ. See Fig 07-012

1шт.

12

BN2407953

SHIFTING UNIT

Air, Rear Axle, 2 Speed

1шт.
