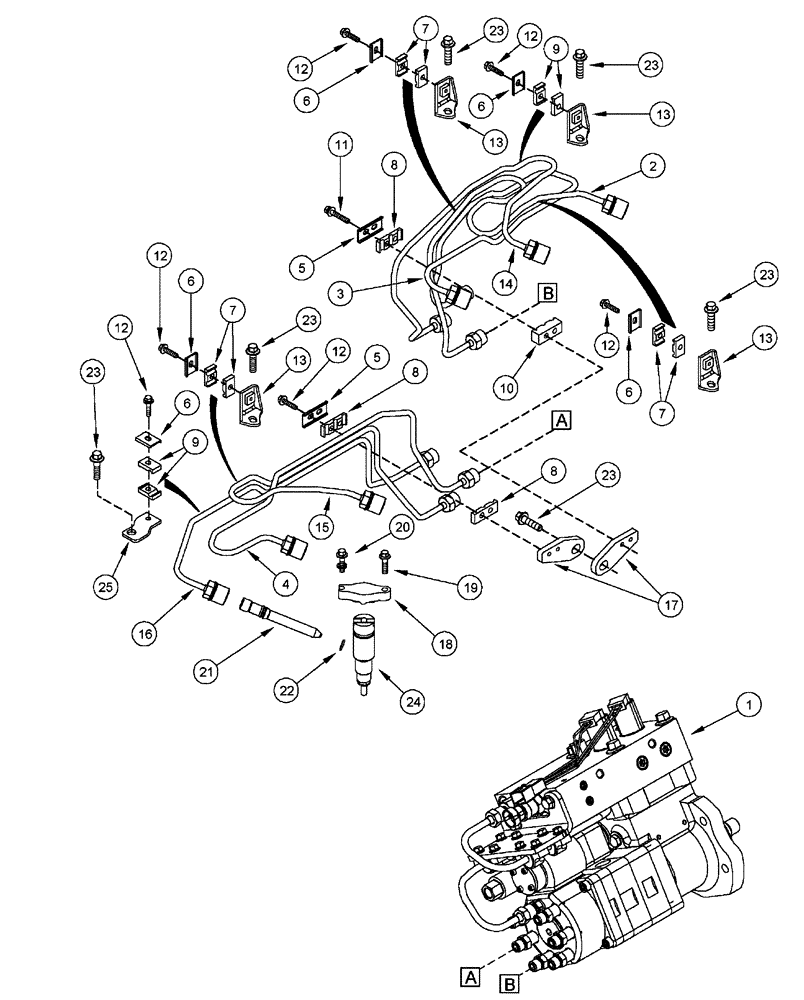

Запчасти Case IH FLX3300B (02-048) - FUEL INJECTION SYSTEM (01) - ENGINE

1

REF

INSTRUCTION

Pump Assembly - Fuel Injection, See Fig 02-049

1шт.

1

87441514C

CORE-FUEL INJECTOR

CORE - ICV Pump - Return number - For N.A. only

1шт.

2

J944686

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

#1

1шт.

3

J944690

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

#3

1шт.

4

J944694

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

#5

1шт.

5

J904519

SUPPORT

Brace - Tube Retaining

2шт.

6

CURJ904711

CLAMP

Bracket - Fuel Tube

5шт.

7

J917746

CLAMP

Fuel Tube

6шт.

8

J917747

CLAMP

Fuel Tube

3шт.

9

J919359

CLAMP

Vibration

4шт.

10

J944699

CLAMP

1шт.

11

J944717

CAPTIVE WASHER SCREW

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

7шт.

13

J930688

SUPPORT

Bracket - Fuel Tube

4шт.

14

J944688

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

#2

1шт.

15

J944692

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

#4

1шт.

16

J944696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

#6

1шт.

17

J944698

SUPPORT

Brace

2шт.

18

J940639

CLAMP

6шт.

19

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

6шт.

20

J940817

SCREW,Hex Flg, M6 x 1 x 25mm

6шт.

21

J936953

FITTING

CONNECTOR

6шт.

22

J867043

SEAL,1.78mm Thk x 10.82mm ID

O-Ring

1шт.

23

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

6шт.

24

REF

INSTRUCTION

Injector Assembly - Fuel See Fig 02-055

6шт.

25

J943503

SUPPORT

Brace

1шт.
