Запчасти Case IH FLX3300B (02-042) - GASKET KIT - VALVE GRIND (01) - ENGINE

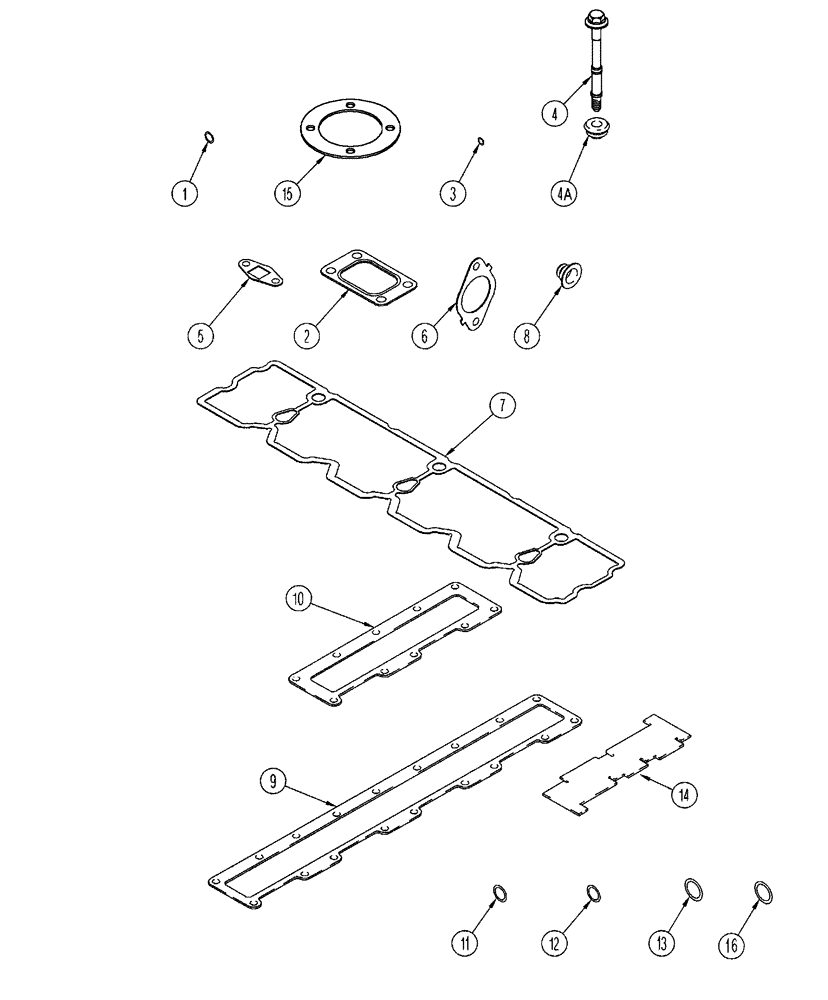

Схема запчастей Case IH FLX3300B - (02-042) - GASKET KIT - VALVE GRIND (01) - ENGINE
14
11
4
1
2
15
13
3
16
9
6
7
12
4a
5
8
10

Артикул

Название

Примечание

Количество

0

A78018

GASKET KIT

Valve Grind

1шт.

1

J867043

SEAL,1.78mm Thk x 10.82mm ID

O-Ring

6шт.

2

J919369

GASKET,0.5mm Thk

Turbocharger To Manifold

1шт.

3

J906659

SEAL

Injector Nozzle, 7 MM Injector Tip

6шт.

3a

J990876

ISOLATOR

Screw

5шт.

4

NSS

NOT SOLD SEPARAT

Screw, Captive Sleeve

1шт.

4a

NSS

NOT SOLD SEPARAT

Isolator - Noise

1шт.

5

J937706

GASKET,0.79mm Thk

Turbo Oil Drain Tube

1шт.

6

J937479

MANIFOLD GASKET

Exhaust

6шт.

7

J939284

GASKET

Valve Cover

1шт.

8

J943888

SEAL

Valve Stem

24шт.

9

J944646

MANIFOLD GASKET

Intake Cover

1шт.

10

J944647

GASKET

Connector

1шт.

11

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

12

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

6шт.

13

313262A1

O-RING,0.07" Thk x 0.364" ID

2шт.

14

J823921

GAUGE

Cylinder Head, Bolt Length

1шт.

15

J917892

GASKET,0.79mm Thk

Mounting

1шт.

16

J678603

O-RING,2.2mm Thk x 9.3mm ID

2шт.

Выбрано товаров: 19
