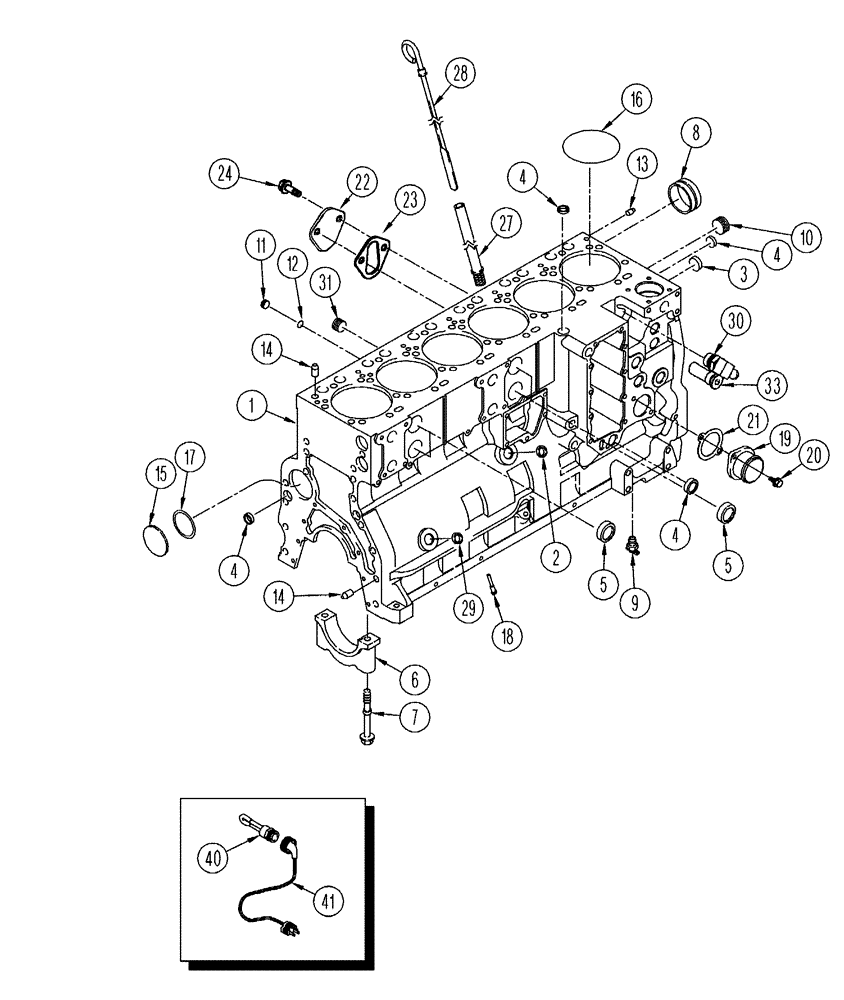

Запчасти Case IH FLX3300B (02-039) - ENGINE - CYLINDER BLOCK (01) - ENGINE

0

381813A1

Engine Assembly - 6Taa-8304 Emissions Certified

1шт.

Complete Engine Less Starter, Alternator, Flywheel, Fan, Air Cleaner, Muffler, Exhaust Pipe

1шт.

0

382365A1

BASIC ENGINE

8.3L, 24 Valve, 6 Cyl.

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

0

84252737R

REMAN-BASIC ENGINE

1шт.

0

84252737C

CORE-BASIC ENGINE

Return Part Number

1шт.

0

J991308

SHORT ENGINE

Block Assembly- New

1шт.

When Ordering Short Block Assembly J991308 Or Stripped Block Assembly J939299, Order Hardware Kit J800332.

1шт.

Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

0

JR991308

REMAN-SHORT ENGINE

1шт.

0

6830SHBC

CORE-SHORT ENGINE

Return Part Number, Engine, Short Block Cyl.

1шт.

0

84271502

KIT

KIT, CYLINDER BLOCK CUMMINS 4089078

1шт.

0

J939299

BASIC BLOCK

Assembly- Stripped, Engine

1шт.

When Ordering Short Block Assembly J991308 Or Stripped Block Assembly J939299, Order Hardware Kit J800332.

1шт.

1

NSS

NOT SOLD SEPARAT

Block, Engine

1шт.

3

A77586

PLUG

Expansion, 28.9 mm od

2шт.

4

A77506

PLUG

Expansion, 21 mm od

4шт.

5

J905401

PLUG

Expansion, 35 MM OD

4шт.

6

J936058

BEARING CAP

Main Bearing

7шт.

7

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Bushing

7шт.

8a

J800332

KIT

Block Hardware

1шт.

When Ordering Short Block Assembly J991308 Or Stripped Block Assembly J939299, Order Hardware Kit J800332.

1шт.

9

217-103

COCK, DRAIN

valve, 1/4" PT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

6шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

Dowel

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

Sealing, 66 MM ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

Piston Cooling

12шт.

19

J913030

FITTING

Connector - Water

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J945603

GASKET,1.65mm Thk

Mounting, Water Inlet

1шт.

22

J948083

COVER

1шт.

23

J939258

GASKET,1.21mm Thk

lift pump

1шт.

24

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

27

J905779

TUBE,9.52 mm OD x 228 mm L

Dipstick

1шт.

28

J937421

DIPSTICK

Engine Oil

1шт.

29

J943808

PLUG

Expansion

1шт.

30

J9429339

Coupling

1шт.

30a

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 mm id x 2.2 mm

1шт.

31

444704

PLUG,Hex Soc, 1/2"-14

1шт.

32

J920443

PLUG

Expansion, 30 mm od

1шт.

Not Shown

1шт.

33

J940116

PLUG

By-Pass

1шт.

33a

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 mm id x 2.2 mm

1шт.

33b

310493A1

KIT

engine block heater, 120V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Engine Block Heater, 120 V (Engine Block Heater)

1шт.

41

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

41a

310494A1

KIT

engine block heater, 240V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element (Engine Block Heater 240 Volt)

1шт.

41

J913112

WIRE HARNESS

Cable - Heater (Engine Block Heater 240 Volt)

1шт.
