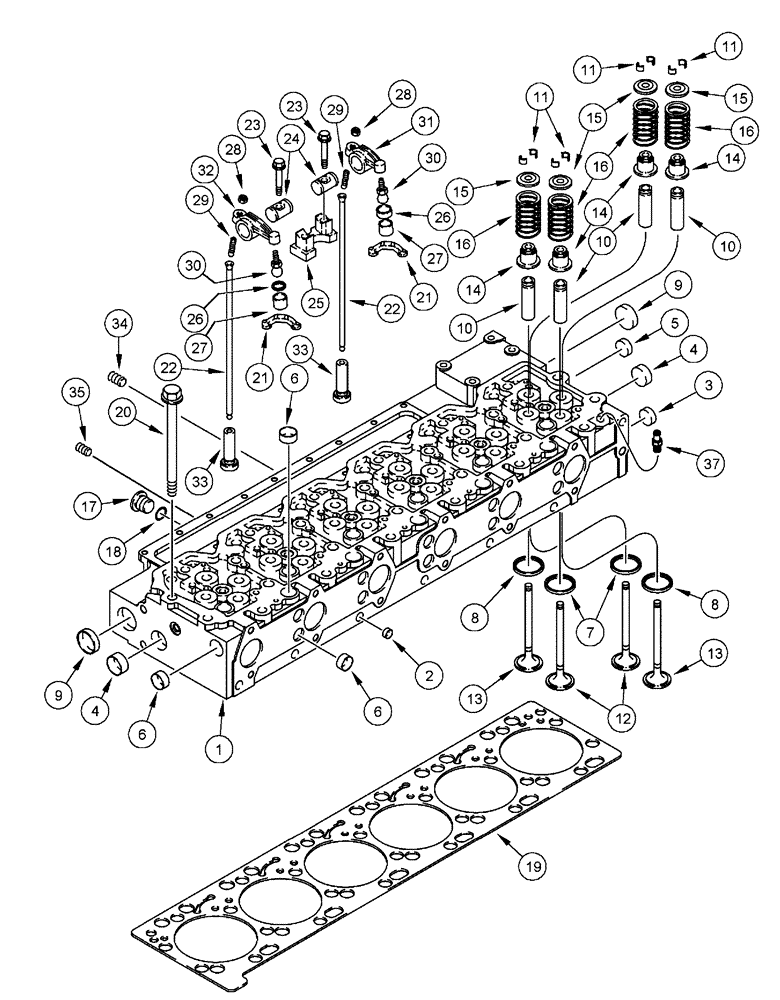

Запчасти Case IH FLX3300B (02-035) - CYLINDER HEAD AND VALVE MECHANISM (01) - ENGINE

0

J948583

CYLINDER HEAD

Assembly With Valves

1шт.

0

JR948583

REMAN-CYLINDER HEAD

Assembly, With Valves, Remanufactured (For Service Order J948583)

1шт.

0

JC948583

CORE-CYLINDER HEAD

Return Part Number, With Valves (Use This Number To Return Cylinder Head With Valves For Credit)

1шт.

1

NSS

NOT SOLD SEPARAT

Head Assembly Cylinder, Without Valves

1шт.

2

A77552

PLUG

Expansion, 29/64" Diameter

6шт.

3

J900955

PLUG

Expansion, 10 MM OD

1шт.

4

A77590

PLUG

Expansion, 28.7 mm od

2шт.

5

J907555

PLUG

Rocker Arm Shaft

1шт.

6

J920706

PLUG

Expansion, 22 MM OD

17шт.

7

J940152

INSERT

Intake Valve

12шт.

8

J940153

INSERT

Exhaust Valve

12шт.

9

41-1624

PLUG,Cup, 1 1/2", Stainless

2шт.

10

J948102

VALVE GUIDE

Stem

24шт.

11

CASJ900250

RETAINER

Keeper - Valve

48шт.

12

J942588

STD INLET VALVE

STD ENGINE INLET VALVE Intake

12шт.

13

J942589

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

14

J991267

SEAL

Valve Stem

24шт.

15

J944452

RETAINER

Valve Spring

24шт.

16

J944711

VALVE SPRING

24шт.

17

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

1шт.

18

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

19

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Standard

1шт.

20

87344126

BOLT

M14 x 160

26шт.

21

J943445

CROSSBAR

Crosshead

12шт.

22

J944174

PUSH ROD

12шт.

23

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

Hex Flange Head, 10-1.5 X 68 MM, Class 10.9

12шт.

24

J941137

SHAFT

Rocker Arm

12шт.

25

J941140

SUPPORT

Rocker Arm

6шт.

25a

J942748

ROCKER ARM

Assembly Intake

6шт.

Consists Of Refs. 26 - 31

1шт.

25b

J942749

ROCKER ARM

Assembly, Exhaust

6шт.

Consists Of Refs. 26 - 30, 32

1шт.

26

NSS

NOT SOLD SEPARAT

Retainer, Socket

1шт.

27

NSS

NOT SOLD SEPARAT

Socket - Rocker Arm

1шт.

28

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

29

J991067

ADJUSTMENT SCREW,3/8" - 24 x 27.58mm

Rocker Arm Adjusting

1шт.

30

NSS

NOT SOLD SEPARAT

Ball - Rocker Arm

1шт.

31

NSS

NOT SOLD SEPARAT

Arm - Rocker, Intake

1шт.

32

NSS

NOT SOLD SEPARAT

Arm - Rocker, Exhaust

1шт.

33

J945866

TAPPET

Valve

12шт.

34

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

35

444704

PLUG,Hex Soc, 1/2"-14

1шт.

36

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

Not Shown

1шт.

37

J943670

FITTING

Orifice

1шт.
