(02-034) - VALVE COVER

Запчасти Case IH FLX3300B (02-034) - VALVE COVER (01) - ENGINE

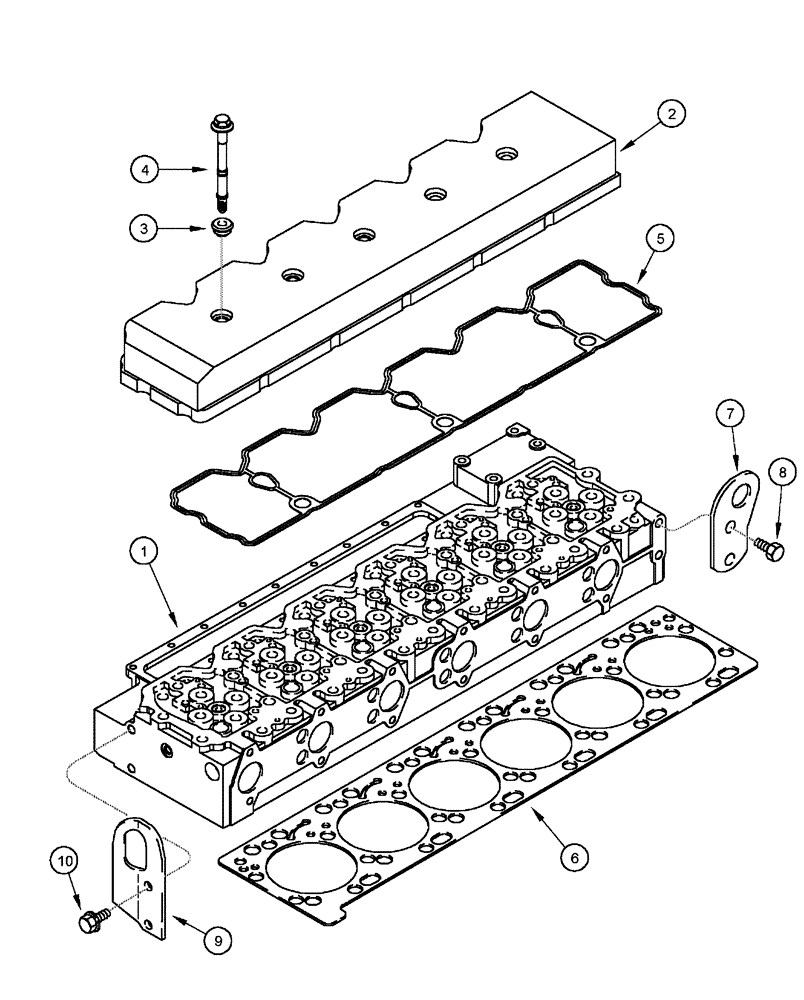

Схема запчастей Case IH FLX3300B - (02-034) - VALVE COVER (01) - ENGINE
4
2
3
8
10
7
9
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Head - Cylinder, See Fig 02-035

1шт.

2

J938445

VALVE COVER

1шт.

2a

J990876

ISOLATOR

Screw

5шт.

3

NSS

NOT SOLD SEPARAT

Isolator, Noise

1шт.

4

NSS

NOT SOLD SEPARAT

Screw, Captive Sleeve

1шт.

5

J939284

GASKET

Valve Cover

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Standard

1шт.

7

J944239

BRACKET

Lifting, Front

1шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

9

J944290

BRACKET

Lifting, Rear

1шт.

10

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.
