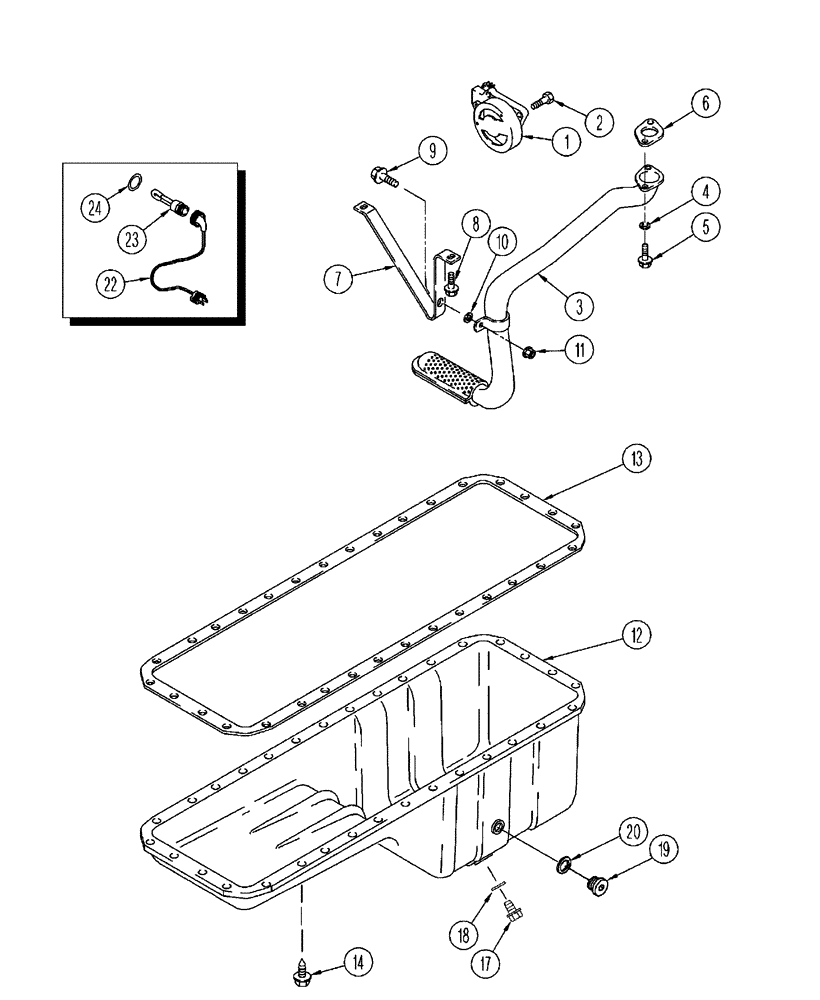

Запчасти Case IH FLX3300B (02-033) - OIL PUMP AND OIL PAN (01) - ENGINE

1

J948072

ENGINE OIL PUMP

1шт.

1

JR948072

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1a

JC948072

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number - For N.A. only

1шт.

2

J900677

BOLT,Hex

Hex, Full Threads, 8 - 1.25 X 30 MM

4шт.

3

J910787

TUBE

With Screen, Oil Suction

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

Mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

Mounting, Oil Suction Tube

1шт.

7

J927611

BRACKET

Brace - Suction Tube

1шт.

8

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

2шт.

9

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

10

J910960

WASHER

Flat, Special

1шт.

11

J906216

FLANGE NUT

Hex Flange, Special, 6 MM - 1.0

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL

1шт.

13

NSS

NOT SOLD SEPARAT

Gasket - Oil Pan

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

32шт.

17

J924147

PLUG,M18 x 1.5

Hex Magnetic, Special, 18 MM - 1.5

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924148

PLUG,M22 x 1.5

Hex Magnetic, Special, 22 MM - 1.5

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug

1шт.

20a

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

Includes Refs. 6, 13, 18, & 20

1шт.

20b

A77580

SERVICE KIT

Oil Pan Heater, Engine Oil

1шт.

When Kit A77666 is Ordered, Ref. 24, J902425 Also Must Be Ordered

1шт.

22

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

23

NSS

NOT SOLD SEPARAT

Element - Heater, 120 Volt (Engine Oil Heater)

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug (Engine Oil Heater, 120 Volt)

1шт.

24a

A77666

SERVICE KIT

Heater, Engine Oil, 240 Volt

1шт.

When Kit A77666 is Ordered, Ref. 24, J902425 Also Must Be Ordered

1шт.

22

J905114

ELECTRIC CABLE

Engine Block Heater, 6 Foot (240 Volt)

1шт.

23

NSS

NOT SOLD SEPARAT

Element - Heater, 240 Volt

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug (Engine Oil Heater, 240 Volt)

1шт.

Ordered Along With The Kit A77580 And A77666

1шт.
