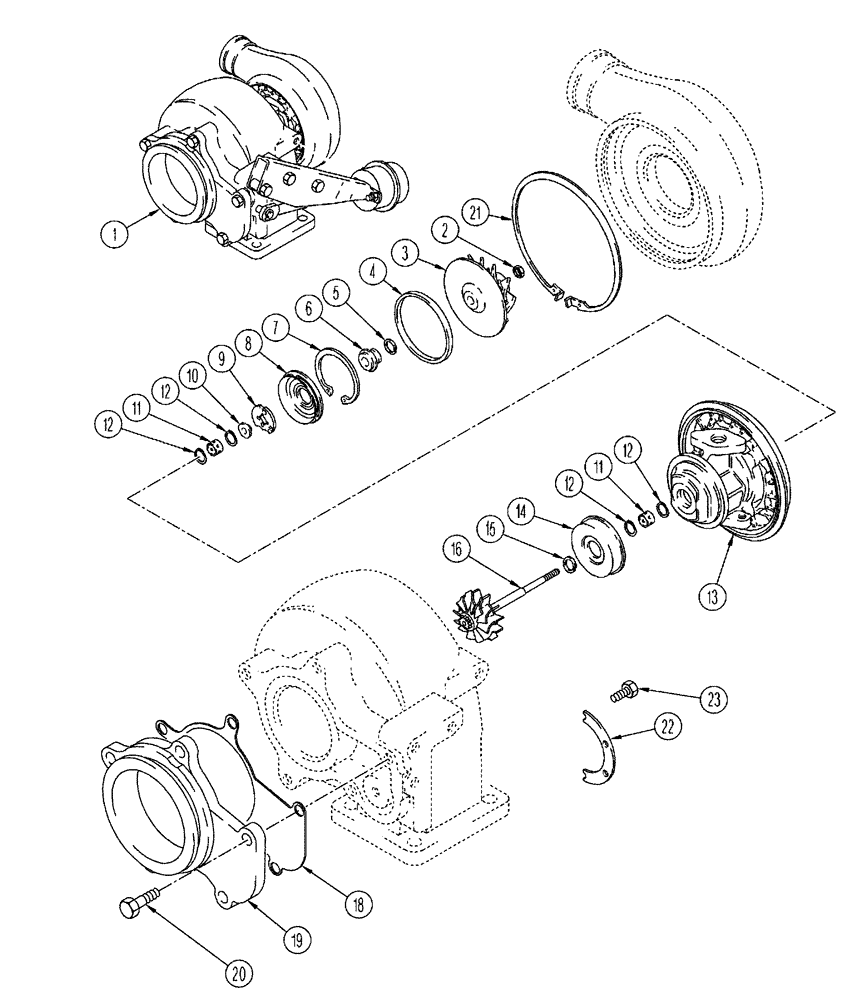

Запчасти Case IH FLX3300B (02-030) - TURBOCHARGER - ASSEMBLY (01) - ENGINE

1

J800406

TURBOCHARGER

Kit, (Includes J591022 Turbocharger Assembly, Not Serviced Separately. For Other Parts, See Fig 02-029, And Fig 02-031

1шт.

1

84410510R

REMAN-TURBOCHARGER

FLX3300B (9/02-10/03), Reman for New PN J800406

1шт.

1

84410510C

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Hex, Lock

1шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller - Turbocharger

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

4

NSS

NOT SOLD SEPARAT

Seal - O-Ring

1шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

5

NSS

NOT SOLD SEPARAT

Seal - Split Ring

1шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger-Oil

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

7

NSS

NOT SOLD SEPARAT

Ring - Retaining

1шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle - Oil

1шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing - Thrust

1шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

10

NSS

NOT SOLD SEPARAT

Collar - Thrust

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing - Impeller Shaft

2шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

12

NSS

NOT SOLD SEPARAT

Ring - Retaining

4шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

13

NSS

NOT SOLD SEPARAT

Housing - Bearing

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

14

NSS

NOT SOLD SEPARAT

Shield - Heat

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

15

NSS

NOT SOLD SEPARAT

Seal - Split Ring

1шт.

Part Of Turbocharger Overhaul Kit, P/N J575769

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft - Turbocharger

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

17

NSS

NOT SOLD SEPARAT

Plate - Oil Seal, Not Shown

1шт.

Part Of Turbocharger Center Housing Assembly, P/N J591196

1шт.

18

J537960

GASKET,0.46mm Thk

Adapter

1шт.

19

J537979

ADAPTER

Exhaust Outlet

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

J533163

SNAP RING

Retaining

1шт.

22

J534309

PLATE

Clamping

2шт.

23

J759917

SET SCREW

Hex Head

6шт.

23a

J575169

REPAIR KIT

Overhaul, Turbocharger (Consists Of Ref. 2, 4, 5, 11, 12, 15, and 21)

1шт.

23b

J591196

CARTRIDGE

Center Assembly - Turbocharger (Consists Of Ref. 2-17)

1шт.
