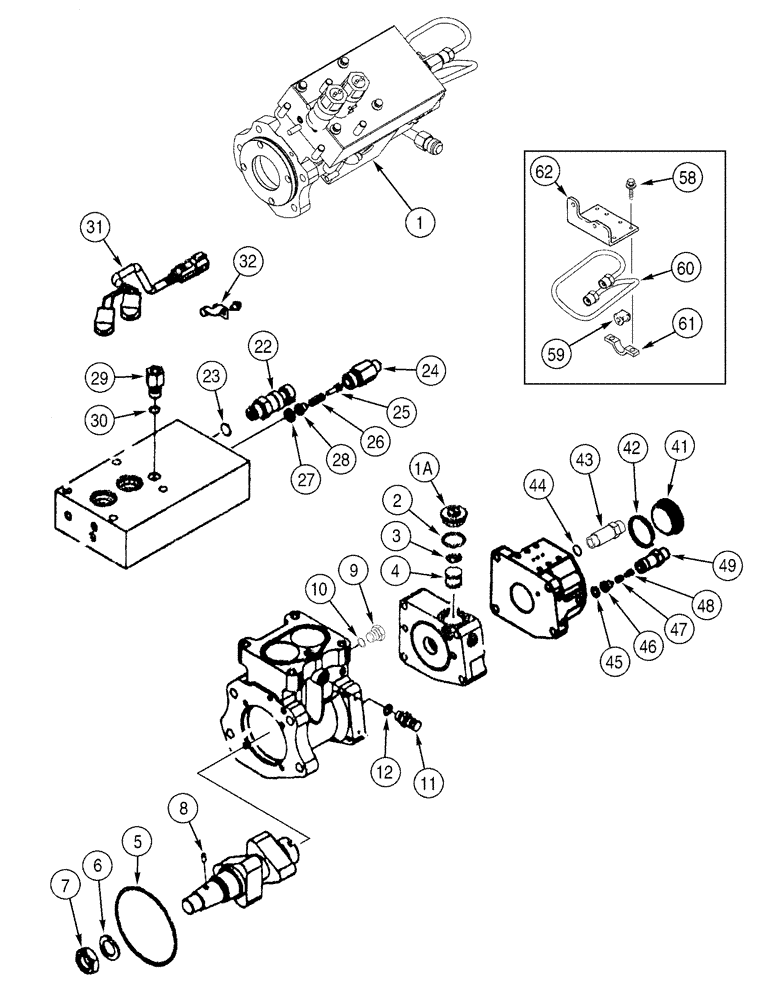

Запчасти Case IH FLX3300B (02-026) - FUEL INJECTION PUMP (FLX3300B CASE ENGINE) (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
BN4010173
GEAR
Pump Assembly, New
1шт.
1
JR417160
REMAN-INJECTION PUMP
Assembly, Remanufactured
1шт.
1
JC417160
CORE-INJECTION PUMP
Return Part Number
1шт.
1a
315475A1
CAP
1шт.
2
86637739
O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro
1шт.
3
315478A1
SPRING
Compression
1шт.
4
315476A1
SCREEN
Filter
1шт.
Not Shown
1шт.
Consists of Refs. 5 - 21
1шт.
AC77928
CORE-HOUSING
Return Part Number - Cam Housing Kit (Use This Part Number To Return Cam Housing Core For Credit)
1шт.
5
J330081
O-RING
1шт.
6
J330252
LOCK WASHER
Lock
2шт.
7
J926593
NUT
M20 X 1.5
1шт.
8
J329899
DOWEL,5.01mm OD x 10mm L
Pin
1шт.
9
233426A1
PLUG,M10 x 1 ORB
1шт.
Includes Ref. 10
1шт.
10
84432614
O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro
1шт.
11
J348448
ELEC CONNECTOR
Assembly
1шт.
Includes Ref. 12
1шт.
12
J678925
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
13
NSS
NOT SOLD SEPARAT
Spring
1шт.
14
NSS
NOT SOLD SEPARAT
Retainer
2шт.
15
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
16
NSS
NOT SOLD SEPARAT
Tappet
2шт.
17
NSS
NOT SOLD SEPARAT
BODy
1шт.
18
NSS
NOT SOLD SEPARAT
Pump
1шт.
19
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
20
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
21
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
J806289
PROBE
Kit, Sensor
1шт.
Consists of Refs. 22, 23
1шт.
22
NSS
NOT SOLD SEPARAT
Sensor
1шт.
23
315120A1
SEAL
1шт.
J800608
VALVE POPPET
Adjuster Assembly
1шт.
Consists of Refs. 24 - 28
1шт.
24
NSS
NOT SOLD SEPARAT
Adapter
1шт.
25
NSS
NOT SOLD SEPARAT
GuIDe
1шт.
26
NSS
NOT SOLD SEPARAT
Spring, Compression
1шт.
27
NSS
NOT SOLD SEPARAT
Seat, Valve
1шт.
28
333034A1
DISC
Seal
1шт.
A77926
ACCUMULATOR
Kit, Accumulator
1шт.
Not Shown
1шт.
Consists of Refs. 29 - 40
1шт.
AR77926
REMAN-ACCUMULATOR
Kit, Remanufactured
1шт.
AC77926
CORE-ACCUMULATOR
Return Part Number
1шт.
29
J347925
ELEC CONNECTOR
1шт.
31
J417161
HARNESS
1шт.
Includes Ref. 32
1шт.
32
J417095
CABLE CLIP
1шт.
33
NSS
NOT SOLD SEPARAT
Retainer
2шт.
34
NSS
NOT SOLD SEPARAT
Plunger
2шт.
35
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
36
NSS
NOT SOLD SEPARAT
Accumulator
1шт.
37
NSS
NOT SOLD SEPARAT
Valve, SolenoID
2шт.
38
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
39
NSS
NOT SOLD SEPARAT
O-Ring
2шт.
40
NSS
NOT SOLD SEPARAT
O-Ring
2шт.
41
J347873
PLUG
1шт.
42
J348757
O-RING,1.424" ID x 1.63" OD
1шт.
J800867
REPAIR KIT
Distributor, Inlet Fitting
1шт.
Consists of Refs. 43, 44
1шт.
43
NSS
NOT SOLD SEPARAT
Fitting
1шт.
44
A77934
SEAL
1шт.
J800350
FITTING
Assy
6шт.
Consists of Refs. 45 - 49
1шт.
45
J867724
SEAL
6шт.
46
NSS
NOT SOLD SEPARAT
Seat, Valve
1шт.
47
NSS
NOT SOLD SEPARAT
Spring, Compression
1шт.
48
NSS
NOT SOLD SEPARAT
Guide
1шт.
49
NSS
NOT SOLD SEPARAT
Adapter
1шт.
A77927
DISTRIBUTOR
Kit, Distributor
1шт.
Consists of Refs. 50 - 57
1шт.
Not Shown
1шт.
AR77927
REMAN-DISTRIBUTOR
Kit, Remanufactured
1шт.
AC77927
CORE-DISTRIBUTOR
Return Part Number
1шт.
50
NSS
NOT SOLD SEPARAT
Gasket, Mounting
1шт.
51
NSS
NOT SOLD SEPARAT
Seal
2шт.
52
NSS
NOT SOLD SEPARAT
Gear
1шт.
53
NSS
NOT SOLD SEPARAT
Screw
6шт.
54
NSS
NOT SOLD SEPARAT
Distributor, Flow
1шт.
55
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
56
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
57
NSS
NOT SOLD SEPARAT
Valve, Control
1шт.
A77932
KIT
Parts, Fuel Supply
1шт.
Consists of Refs. 58 - 62
1шт.
58
9804256
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
8шт.
59
NSS
NOT SOLD SEPARAT
Isolator
4шт.
60
NSS
NOT SOLD SEPARAT
Tube
1шт.
61
NSS
NOT SOLD SEPARAT
Clamp
4шт.
62
NSS
NOT SOLD SEPARAT
Bracket
1шт.
A77929
PACKAGE
Kit, Parts, Pump
1шт.
Consists of Refs. 63 - 69
1шт.
Not Shown
1шт.
AR77929
REMAN-GEAR
Kit, Gear, Pump, Remanufactured
1шт.
AC77929
CORE-GEAR
Return Part Number
1шт.
63
NSS
NOT SOLD SEPARAT
Gear
1шт.
64
NSS
NOT SOLD SEPARAT
Gear
1шт.
65
NSS
NOT SOLD SEPARAT
Gear
1шт.
66
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
67
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
68
NSS
NOT SOLD SEPARAT
O-Ring
2шт.
69
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
Выбрано товаров: 105
