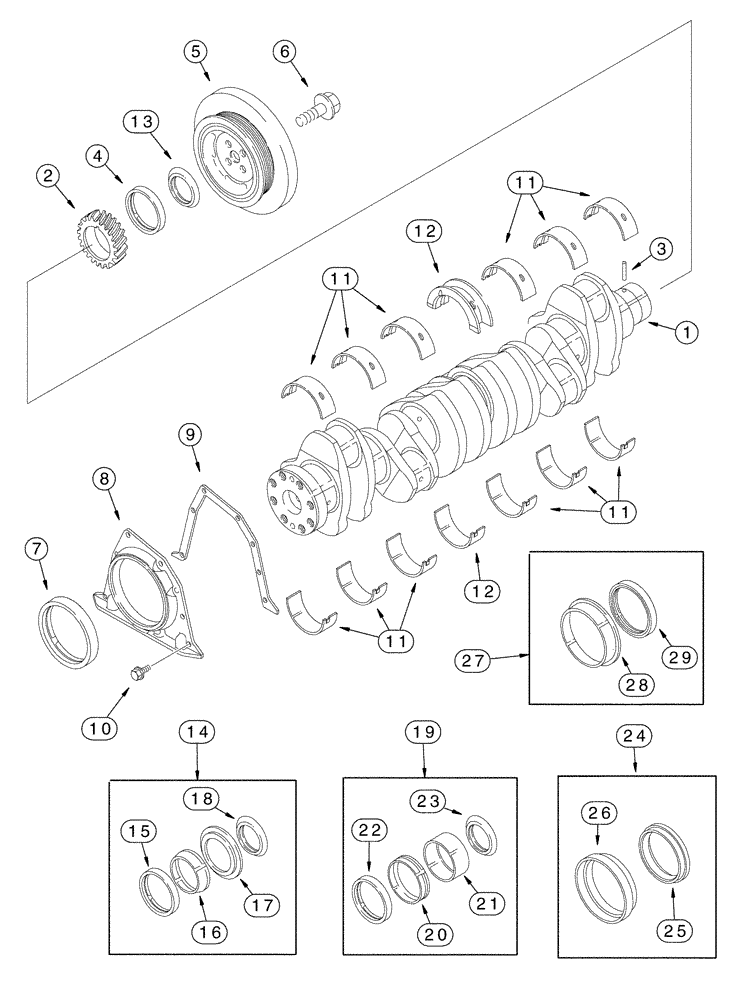

Запчасти Case IH FLX3300B (02-019) - CRANKSHAFT (FLX3300B CASE ENGINE) (01) - ENGINE

1

J918986

CRANKSHAFT

Assembly, New

1шт.

Includes Refs. 2, 3

1шт.

1

JR918986

REMAN-CRANKSHAFT

Assembly, Remanufactured, N.A. Only

1шт.

Includes Refs. 2, 3

1шт.

1

JC918986

CORE-CRANKSHAFT

Return Number

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Dowel

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order : A77790

1шт.

See Ref. 14

1шт.

5

J925570

DAMPER

Pulley

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

hex flange, special, 14 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order : J353978

1шт.

See Ref. 24

1шт.

8

J921042

REAR COVER

Retainer

1шт.

9

J914301

GASKET

Mounting

1шт.

10

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

8шт.

11

J945930

BEARING SET

Crankshaft, Main, Upper and Lower Set, Standard

6шт.

11

J945931

BEARING SET

Crankshaft, Main, Upper And Lower Set, 0.25 mm Undersize

6шт.

11

J945932

BEARING SET

Main, Upper And Lower Set, 0.50 mm Undersize

6шт.

11

J945933

BEARING SET

Main, Upper And Lower Set, 0.75 mm Undersize

6шт.

11

J945934

BEARING SET

Main, Upper And Lower Set, 1.0 mm Undersize

6шт.

12

J945929

THRUST BEARING

Main Thrust, Upper And Lower Set, Standard

1шт.

12

J945922

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.25 mm Undersize

1шт.

12

J945923

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.50 mm Undersize

1шт.

12

J945924

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.75 mm Undersize

1шт.

12

J945925

THRUST BEARING

Main Thrust, Upper and Lower Set, 1.0 mm Undersize

1шт.

12

J945926

THRUST BEARING

Main Thrust, Upper and Lower Set, Standard JourNal Diameter, 0.25 mm Oversize Thrust Width

1шт.

12

J945927

THRUST BEARING

Main Thrust, Upper and Lower Set, Standard Journal Diameter, 0.50 mm Oversize Thrust Width

1шт.

12

J945928

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.50 mm Undersize Journal Diameter, 0.50 mm Oversize Thrust Width

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order : A77790, (See Ref. 18)

1шт.

14

A77790

SEAL KIT

Oil, Crankshaft Front

1шт.

Consists of Refs. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Wear Sleeve, Crankshaft Front

1шт.

Consists of Refs. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J353978

SEAL PACKAGE

Replaces : A77809, Crank., Rear

1шт.

Consists of Refs. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

27

A77810

SERVICE KIT

Wear Sleeve, Crankshaft Rear

1шт.

Consists of Refs. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.
