(02-016) - CRANKCASE, BREATHER (FLX3300B CASE ENGINE)

Запчасти Case IH FLX3300B (02-016) - CRANKCASE, BREATHER (FLX3300B CASE ENGINE) (01) - ENGINE

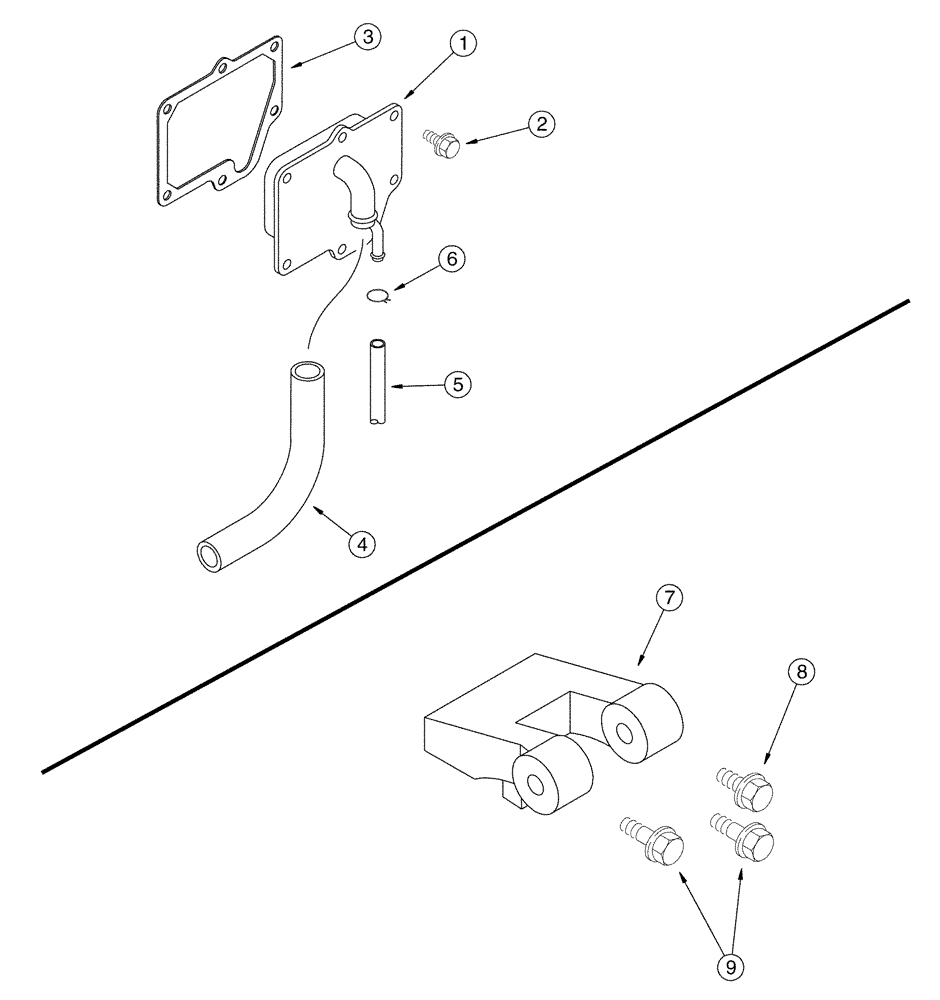

Схема запчастей Case IH FLX3300B - (02-016) - CRANKCASE, BREATHER (FLX3300B CASE ENGINE) (01) - ENGINE
3
9
8
5
6
2
7
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J944610

BREATHER

1шт.

2

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

6шт.

3

J944683

GASKET

Mounting

1шт.

4

J944713

HOSE,100.00 mm

1шт.

5

J944714

TUBE,320.00 mm

1шт.

6

86637700

HOSE CLAMP,#18, 1 1/8", Spring

1шт.

7

J944311

SUPPORT

Bracket

1шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

9

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.
