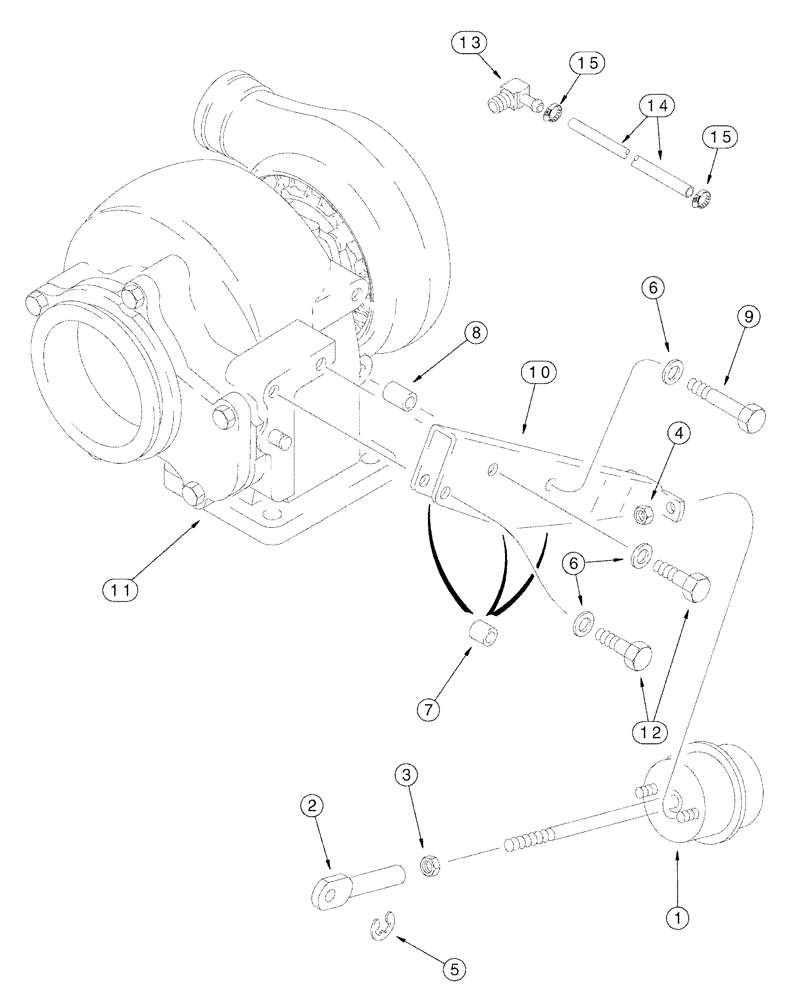

Запчасти Case IH FLX3300B (02-010) - WASTEGATE ACTUATOR (FLX3300B CASE ENGINE) (01) - ENGINE

NSS

NOT SOLD SEPARAT

Turbocharger Assembly

1шт.

Consists of Refs. 1 -15, Also Includes Refs. 2 - 22, See Fig. 02-009

1шт.

1

J533135

ACTUATOR

1шт.

J533135C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.

J580830C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.

2

J528177

LINK

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J528204

LOCK NUT

Lock

2шт.

5

J528221

CIRCLIP

1шт.

NSS

NOT SOLD SEPARAT

Housing

1шт.

Consists of Refs. 6 - 12

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

13.6 MM

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

19 MM

1шт.

9

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

10

J532671

BRACKET

1шт.

11

NSS

NOT SOLD SEPARAT

Housing

1шт.

12

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

13

J528121

ELBOW

1шт.

14

A77918

HOSE

1шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.
