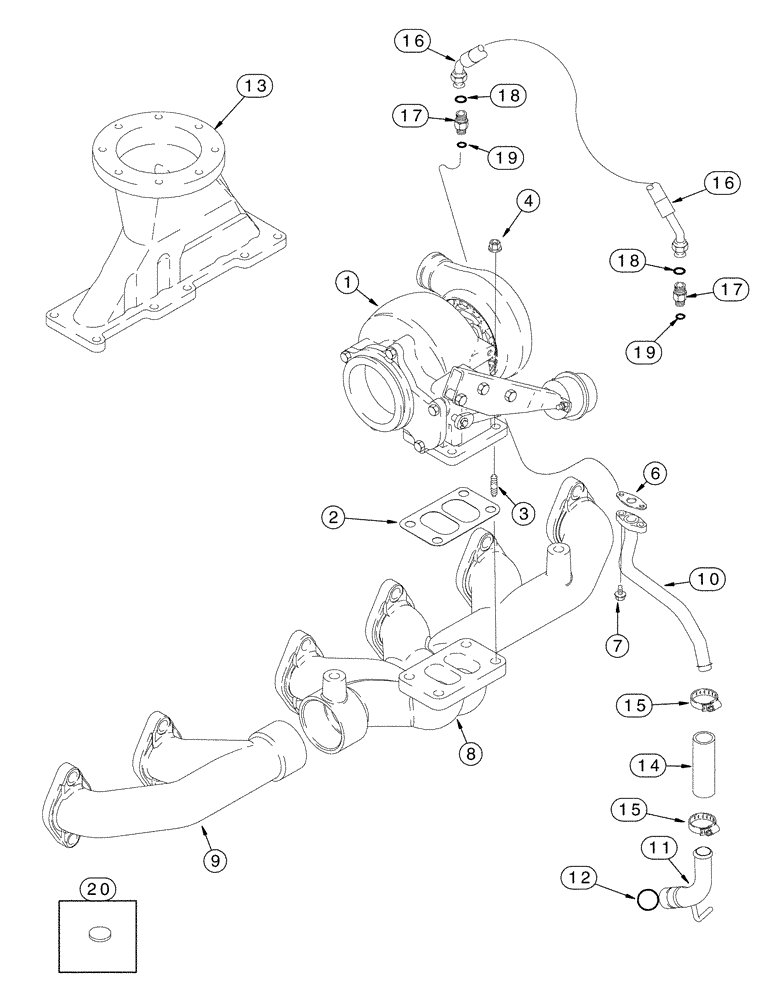

Запчасти Case IH FLX3300B (02-008) - TURBOCHARGER SYSTEM (FLX3300B CASE ENGINE) (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

Turbocharger Assembly

1шт.

See Fig. 02-009

1шт.

2

J901356

GASKET,0.5mm Thk

Mounting

1шт.

3

J818823

STUD

4шт.

4

J818824

FLANGE NUT

Flange, M10

4шт.

6

J931350

GASKET

Mounting, Replaces : J942725

1шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

Manifold

1шт.

See Fig. 02-007

1шт.

9

NSS

NOT SOLD SEPARAT

Manifold

1шт.

See Fig. 02-007

1шт.

10

J943822

TUBE ASSY.

1шт.

11

J944608

TUBE,0.875" OD

Used With : J931824

1шт.

12

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Connector

1шт.

See Fig. 02-007

1шт.

14

J931970

HOSE,22.22 mm ID x 76.20 mm

1шт.

15

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

16

J942223

HOSE

1шт.

17

J922789

HYD CONNECTOR

Adapter

2шт.

Includes Refs. 18, 19

1шт.

18

313263A1

O-RING,2.2mm Thk x 9.3mm ID

1шт.

19

313262A1

O-RING,0.07" Thk x 0.364" ID

1шт.

20

J920706

PLUG

Expansion, 22 MM

1шт.
