(02-007) - MANIFOLDS (FLX3300B CASE ENGINE)

Запчасти Case IH FLX3300B (02-007) - MANIFOLDS (FLX3300B CASE ENGINE) (01) - ENGINE

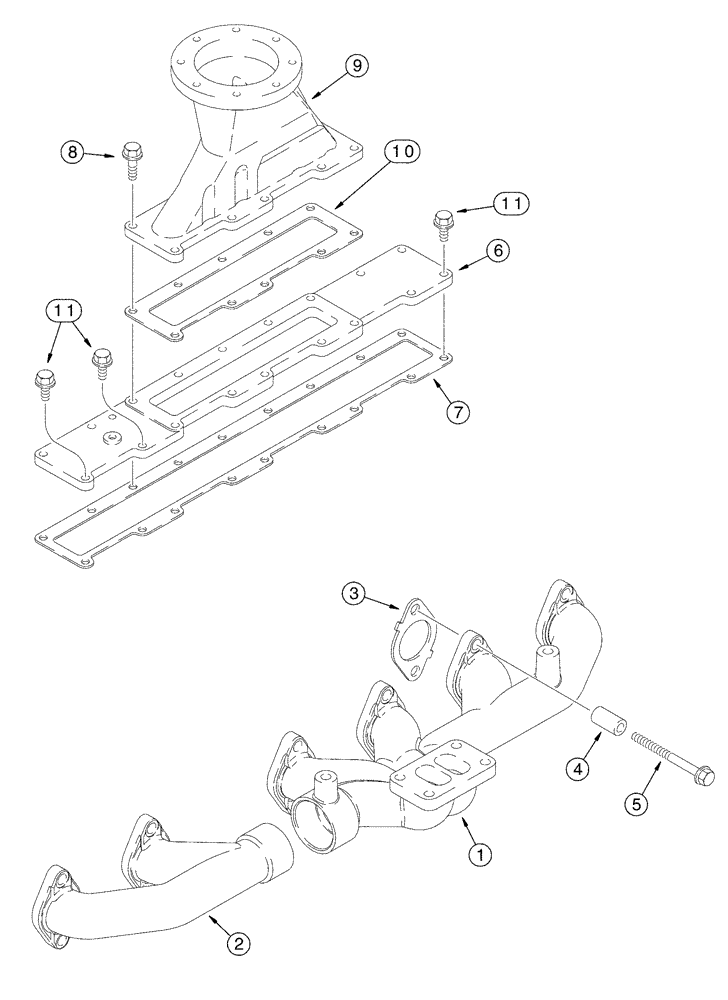

Схема запчастей Case IH FLX3300B - (02-007) - MANIFOLDS (FLX3300B CASE ENGINE) (01) - ENGINE
5
2
6
11
8
3
10
7
1
4
9
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J943841

EXHAUST MANIFOLD

1шт.

2

J943850

MANIFOLD

Exhaust

1шт.

3

J943191

MANIFOLD GASKET

Exhaust

6шт.

4

J945252

SPACER

Mounting, 35 mm, Exhaust

12шт.

5

J944593

BOLT

Flange, M8 X 165mm, Exhaust

12шт.

6

CASJ944342

COVER

Intake

1шт.

7

J944646

MANIFOLD GASKET

Intake

1шт.

8

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Intake

10шт.

9

J943613

AIR INTAKE

1шт.

10

J944647

GASKET

Mounting, Intake

1шт.

11

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

Intake

7шт.
