(10-007) - FOAM TANK

Запчасти Case IH FLX3300B (10-007) - FOAM TANK Options

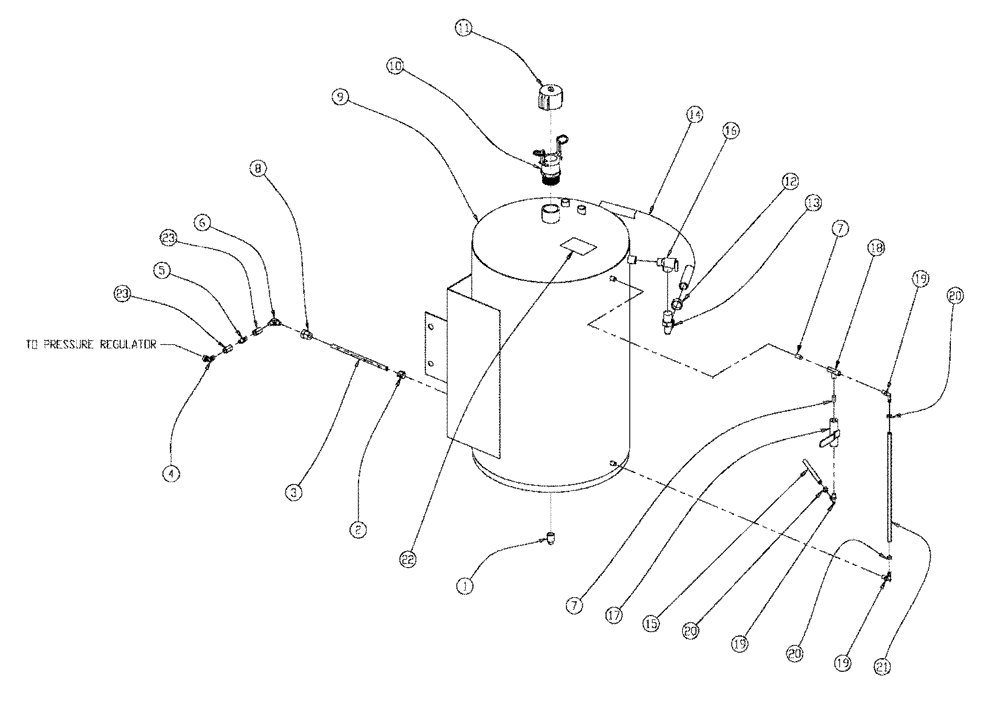

Схема запчастей Case IH FLX3300B - (10-007) - FOAM TANK Options
2
20
16
22
4
19
6
12
19
5
19
21
7
23
10
7
17
3
18
11
1
8
9
14
23
15
20
20
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN305117

PLUG

3/4 pipe, SS

1шт.

2

BN2396381

CAP

THD 1/4" PVC Cap FPT

1шт.

3

BN8094016

TUBE

Foam Marker

1шт.

4

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

5

BN307985

VALVE

check, 1-2.5 CRK, 1/4 P

1шт.

6

BN305118

FITTING

90, 1/4-1/4, SS

1шт.

7

BN1420320

LUBE NIPPLE

LUBRICATOR S80 1/4 All Thread

2шт.

8

BN305120

BUSHING

Red, Rework 305119

1шт.

9

BN8194120

TANK

Foam 65 GL

1шт.

10

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

F 2" Poly

1шт.

11

BN2393383

CAP

Coupler 2" Dust Poly

1шт.

12

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

13

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

14

BN304932

HOSE,0.75" ID x 43.00"

1шт.

15

BN304931

HOSE,0.38" ID x 48.00"

1шт.

16

BN2392285

VALVE PRESSURE RELIE

Conbraco

1шт.

17

BN2298246

HYDRAULIC VALVE

Ball 1/4" S.S.

1шт.

18

BN2011315

TEE

Pipe 1/4" SS

1шт.

19

BN325317

FITTING

Hose Barb, 1/4" MPT x 3/8" 90º

3шт.

20

BN76094

HOSE CLAMP

SS #M4

3шт.

21

BN304930

HOSE,0.38" ID x 27.75"

1шт.

22

BN21723B

DECAL

Danger-Tank Pressure M25

1шт.

23

BN73015

COUPLING

1/4" NPT SS Full

2шт.
