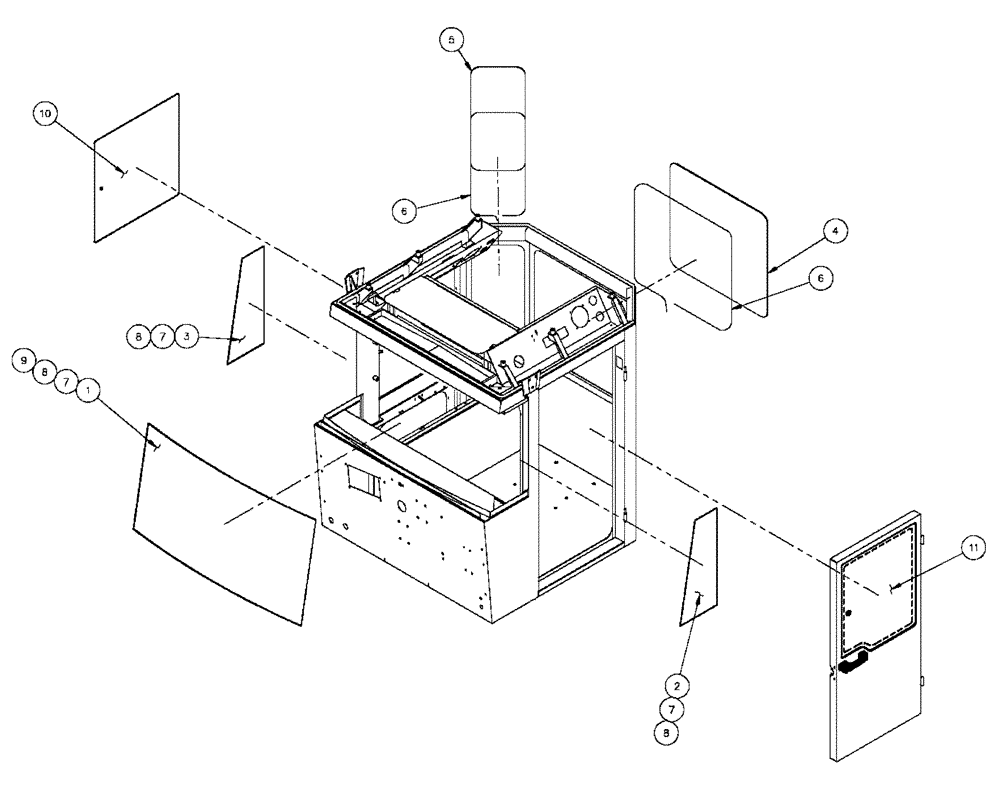

Запчасти Case IH FLX3300B (01-019) - GLASS & GASKET (10) - CAB

1

BN314479

GLASS

Center

1шт.

2

BN314482

GLASS

Front Side, RH

1шт.

3

BN314482

GLASS

Front Side, RH

1шт.

4

BN314483

GLASS

Rear

1шт.

5

BN2406306-013

ANGLE

Corner SS Glass

2шт.

6

BN2401306

MOLDING

90 Degree 23.5

2шт.

7

BN314484

TAPE

Black Butyl .312 SQ. 29'

3шт.

8

BN314485

SEALANT

Urethane, No Primers 4.5'

3шт.

9

BN314486

SEALANT

Hi Viscosity Blk

1шт.

10

NSS

NOT SOLD SEPARAT

Glass, RH Side

1шт.

See Fig. 01-017

1шт.

11

NSS

NOT SOLD SEPARAT

Glass, LH Side

1шт.

See Fig. 01-018

1шт.
