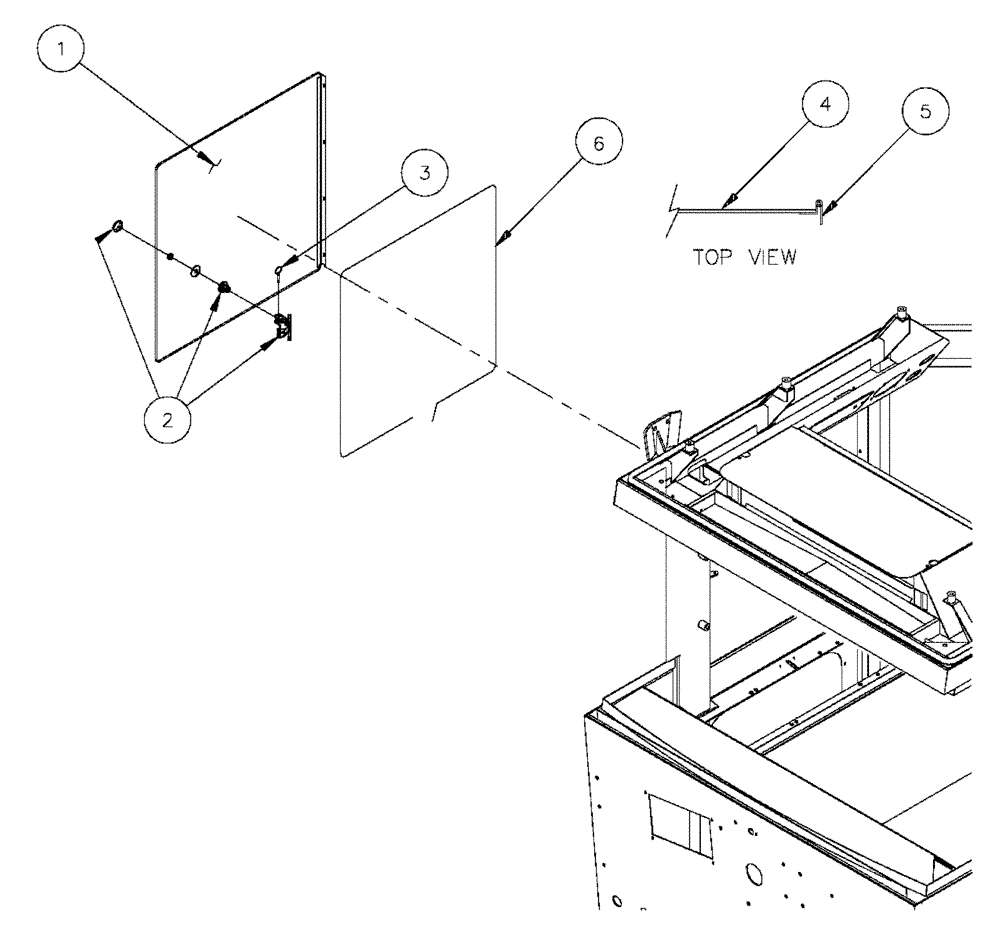

Запчасти Case IH FLX3300B (01-017) - SWING-OUT WINDOW (10) - CAB

1

BN315640

WINDOW

Swing-Out Window Assembly

1шт.

Includes Refs. 2 - 5

1шт.

2

BN318021

LATCH

Overcenter

1шт.

3a

BN2406306-017

ROLL PIN

3/16 X 1/2

1шт.

3b

BN2406306-018

PIN

Detent, .186 DIA.

1шт.

4

BN314487

GLASS

RH Side

1шт.

5

BN314488

HINGE

Window

1шт.

6

BN315637

SEAL

Window

1шт.
