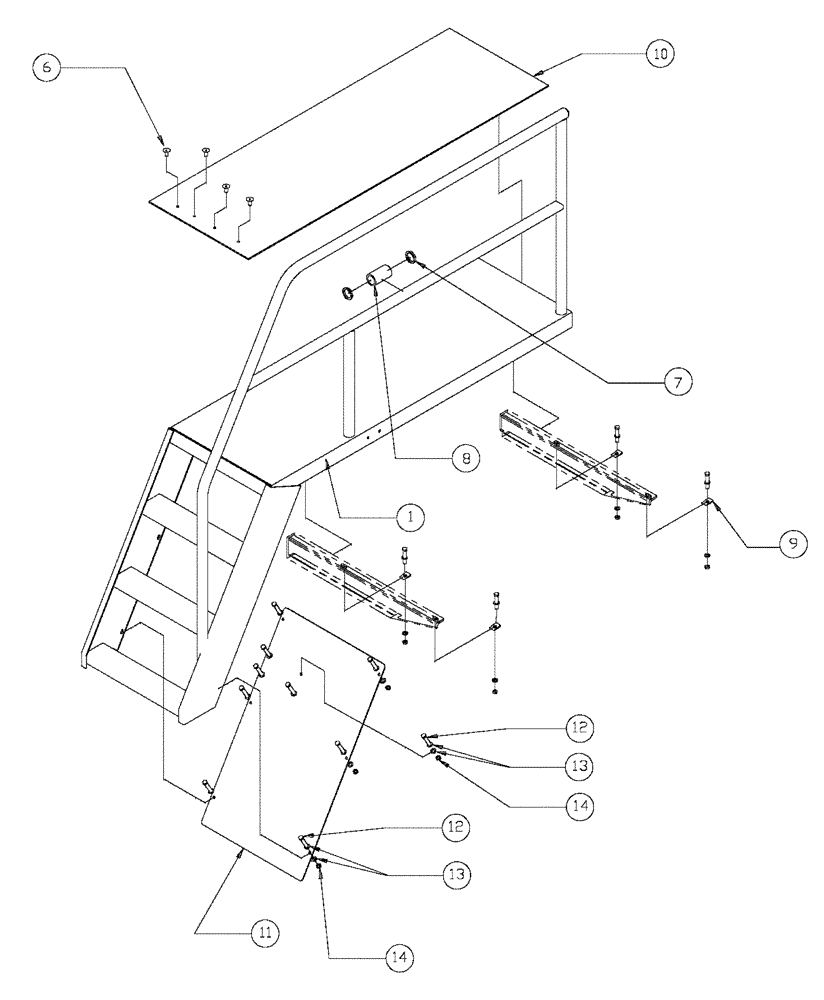

Запчасти Case IH FLX3300B (04-007) - WALKWAY ASSEMBLY Frame & Suspension

1

BN318980

WALKWAY

CATWALK 3 Wheel

1шт.

6

BN2394894

RIVET

Pop 97525A032 3/16X

4шт.

7

BN9990113

RTH-1400

2шт.

8

BN7141860

HOSE

Door/Window Bumper

1шт.

9

BN53802

WASHER

Beveled, 1/2"

4шт.

10

BN2401312

MAT

P-80 GRS/PSA

4шт.

11

BN309915

SHEET

Ladder 3 Wheel

1шт.

12

BN50884

5/16-18 X 2.25, HH, G5

10шт.

13

BN50141

WASHER

5/16, G5

20шт.

14

BN55360

LOCK NUT

5/16"-18, NLN, G5

10шт.
