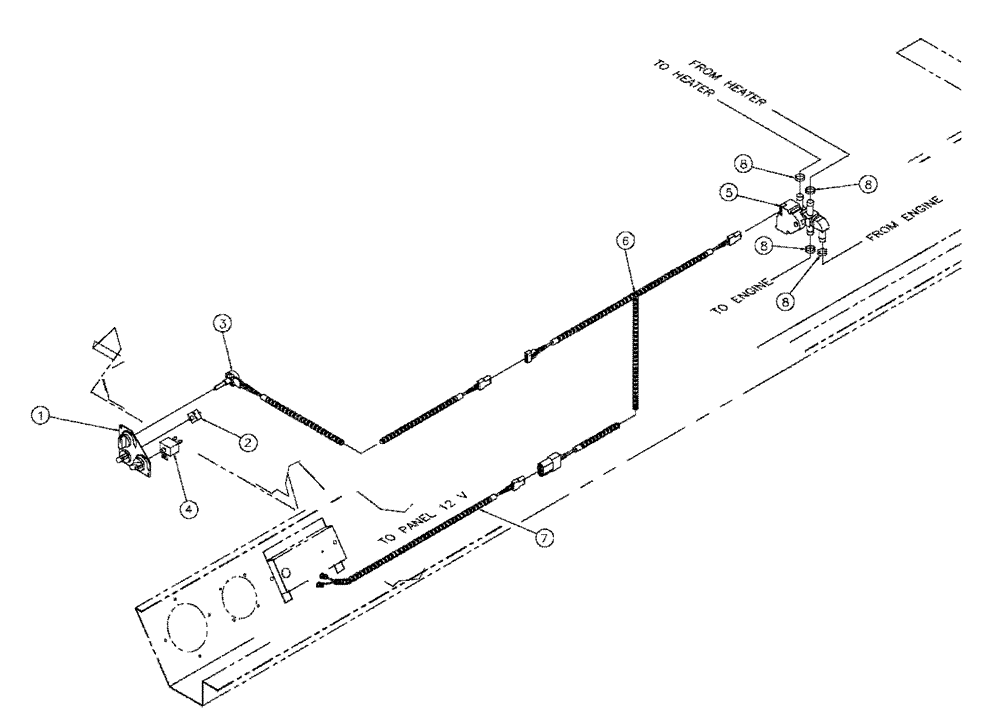

Запчасти Case IH FLX3300B (01-007) - TEMPERATURE CONTROL ASSEMBLY (10) - CAB

1

BN316427

Control Group

1шт.

BN315869

PLATE

Temp Controls, Cab

1шт.

Part Of plate-Decal Control Group, P/N BN316427

1шт.

BN316428

KNOB

Control

3шт.

Part Of plate-Decal Control Group, P/N BN316427

1шт.

BN316429

DECAL

Heater Control Panel

1шт.

Part Of plate-Decal Control Group, P/N BN316427

1шт.

2

BN2394976

SWITCH

Blower Speed

1шт.

3

BN316421

POTENTIOMETER,10,000 Ohm

Temperature Control

1шт.

4

BN2402030

THERMOSTAT

A/C (3-11313)

1шт.

5

BN316146

MOTOR

1шт.

6

BN316437

WIRE HARNESS

Power Temperature Control

1шт.

7

BN316493

WIRE HARNESS

Titan A/C EXT.

1шт.

8

BN2296337

CLAMP

H10 SS

4шт.
