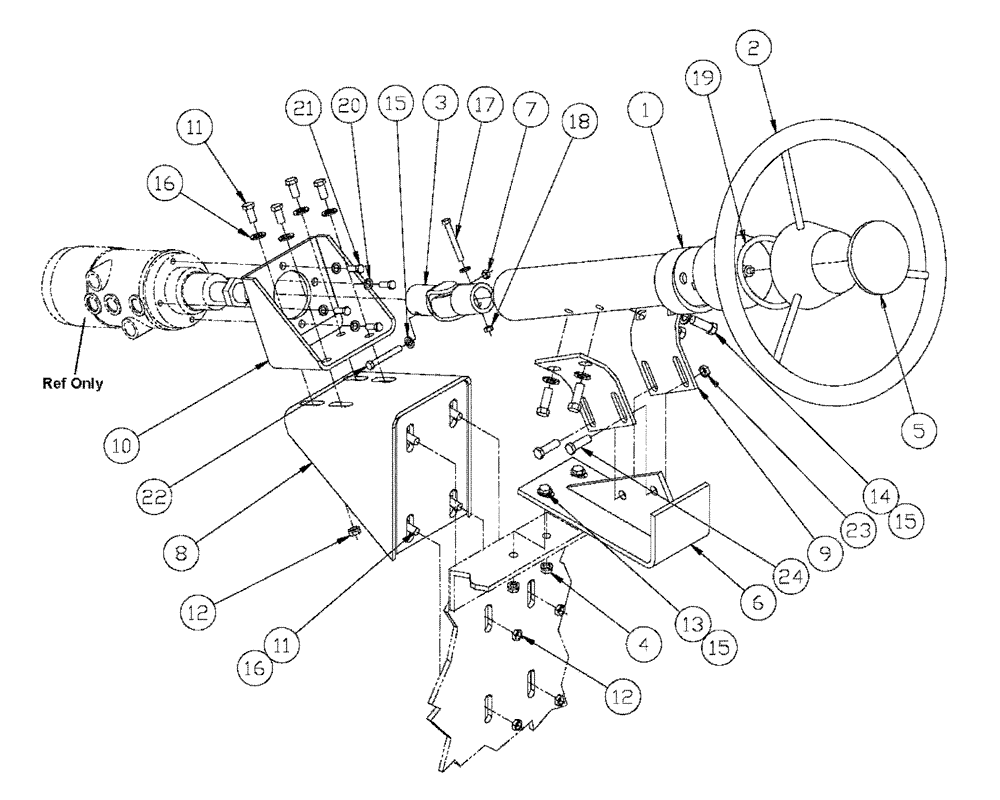

Запчасти Case IH FLX3300B (01-005) - STEERING ASSEMBLY (10) - CAB

1

BN2396330

STEERING COLUMN

Assembly

1шт.

2

BN2298398

STEERING WHEEL

1шт.

BN2396330-001

REPAIR KIT

Turn Signal Repair Kit

1шт.

3

BN2292560

YOKE

W/ U-Joint

1шт.

BN2294188

REPAIR KIT

U-Joint

1шт.

Service Parts For Ref. 3

1шт.

4

BN305104

FLANGE NUT

3/8-16, FLN, G8

4шт.

5

BN312561

CAP

Steering Wheel, Black

1шт.

7

BN305105

FLANGE BOLT,3/8" - 24, Gr 8

3/8-24, FLN, G8

1шт.

8

BN7142247

MOUNTING PLATE

Steering Valve, MT

1шт.

10

BN7142246

MOUNTING PARTS

Steering Valve (Cat Engines)

1шт.

10

BN315819

PUMP

Steering Valve (Case Engine)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

12

BN305108

FLANGE BOLT,3/8" - 16, SST

3/8-16, FLN, SS

4шт.

13

BN1913634C

3/8-16 X 1, HH, G8

4шт.

14

BN305106

SCREW,3/8" - 24 x 3/4", Gr 8

3/8-24 X .75, HH, G8

4шт.

15

BN2292371

NUT

3/8, FW, G8

10шт.

16

BN50146

WASHER,3/8", Stainless

8шт.

17

BN305101

SCREW,Hex, 5/16" - 24 x 2", Gr 8

5/16-24 X 2, HH, G8

1шт.

18

BN305100

FLANGE BOLT,5/16" - 24, Gr 8

5/16-24, FLN, G8

1шт.

19

BN2395066

SEAL

Trim, SD-161

2шт.

20

BN305102

SCREW,5/16", Gr 8

5/16, LW, G8

4шт.

21

BN305103

SCREW,5/16" - 18 x 3/4", Gr 8

5/16-18 X .75,HH,G8

4шт.

22

BN305107

SCREW,Hex, 3/8" - 24 x 1 3/4", Gr 8

3/8-24 X 1.75, HH, G8

1шт.

23

BN305109

FLANGE BOLT,7/16" - 20, Gr 8

7/16-20, FLN, G8

2шт.

24

BN50816

7/16-20 X 1.5, HH, G8

2шт.
