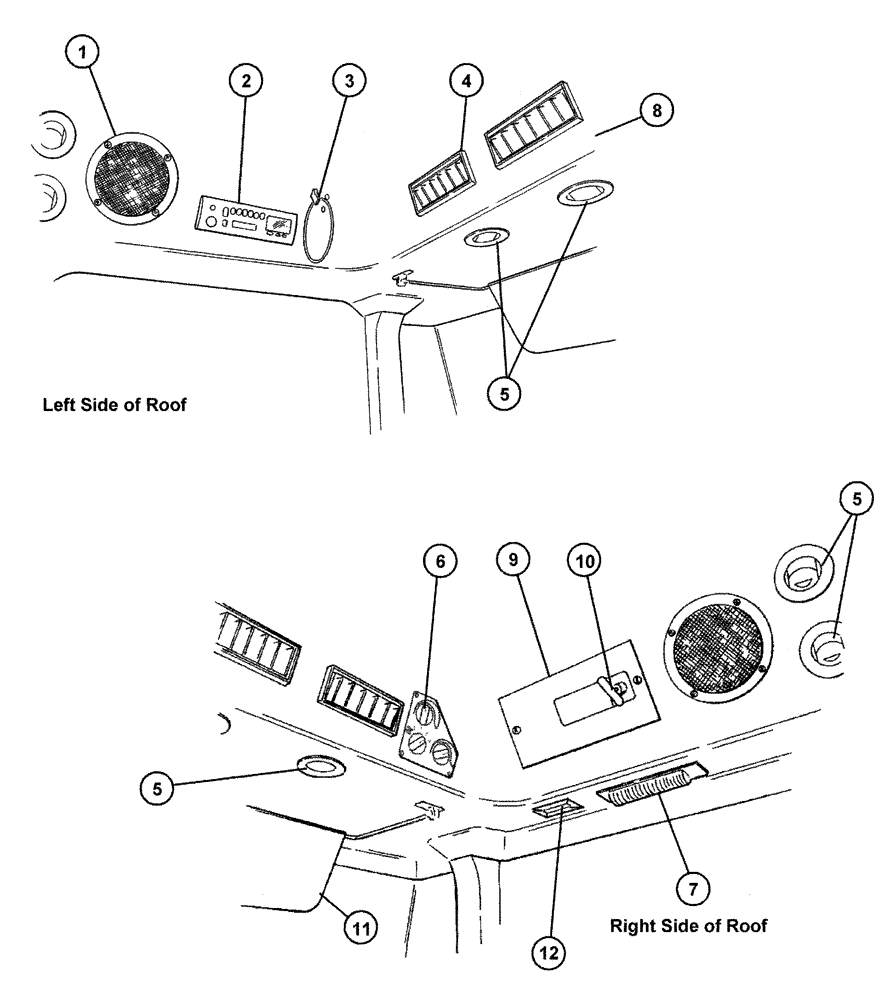

Запчасти Case IH FLX3300B (01-004) - ACCESSORIES (10) - CAB

1

BN2391154-002

RADIO

2шт.

2

BN2391154-001

RADIO

AM/FM/ST/Cass

1шт.

BN311133

BRACKET

Antenna

1шт.

Associated Part Of Radio, AM/FM/ST/Cass, P/N BN2391154-001

1шт.

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

3шт.

Associated Part Of Radio, AM/FM/ST/Cass, P/N BN2391154-001

1шт.

BN2391154-003

ANTENNA

Rubber

1шт.

Associated Part Of Radio, AM/FM/ST/Cass, P/N BN2391154-001

1шт.

BN2391154-004

Antenna 36"

1шт.

Associated Part Of Radio, AM/FM/ST/Cass, P/N BN2391154-001

1шт.

3

BN300566

SLEEVE

Aluminum

1шт.

BN300567

HOOK

S, Air Horn Install

1шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

BN2403383

CABLE

Vinyl Coat 1/16

1шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

12шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

BN324834

HORN

Fultone, Stainless

1шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

BN7143114

MOUNTING PLATE

Angle, Horn Valve

1шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

4

BN2406306-010

VENT

Rect

3шт.

5

BN2406306-011

VENT

Round 2"

7шт.

6

NSS

NOT SOLD SEPARAT

Assembly Temperature

1шт.

See Fig. 01-007

1шт.

7

BN2406306-020

COURTESY LIGHT

DOME LIGHT

1шт.

8

BN314495

ROOF LINING

Covered

1шт.

9

BN7142713

SHEET

Cover Fuse

1шт.

10

BN2403349

CABLE

Twistlock

1шт.

11

BN2407981

SUN GEAR

Acrylic 8630

1шт.

12

83882C91

LAMP

Assembly, Courtesy

1шт.

BN314494

FLOOR MAT

Cab

1шт.

Not Shown

1шт.

BN2406306-021

Flexhose, 2 1/2" Heater (Located In Cab Roof)

1шт.

Not Shown

1шт.
