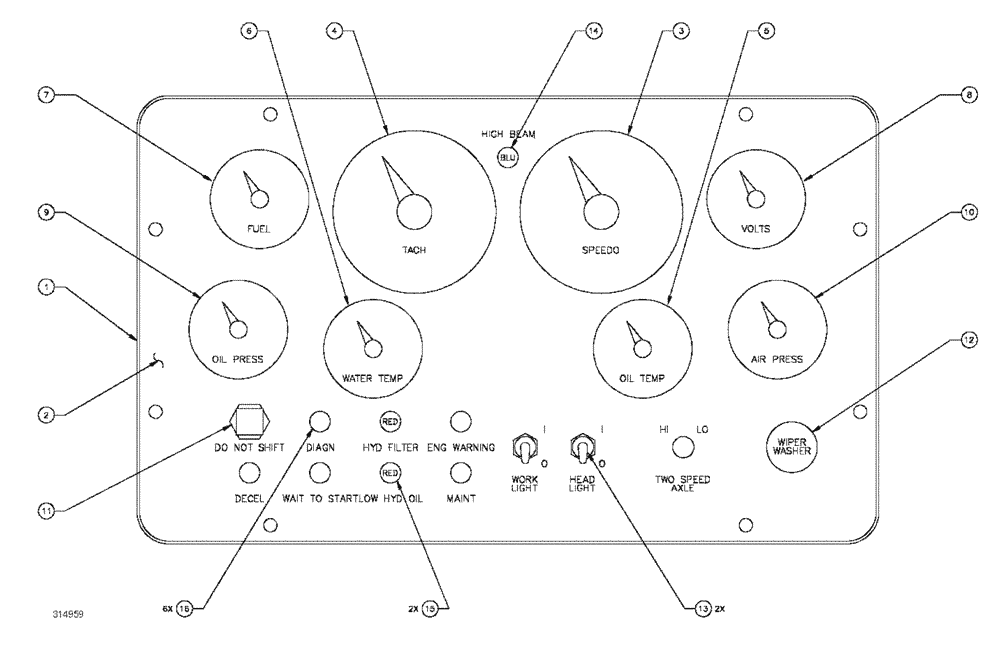

Запчасти Case IH FLX3300B (01-001) - LEFT DASH ASSEMBLY (FLX3300B CAT ENGINE & FLX3330B) (10) - CAB

1

BN316978

DASH PANEL

Left

1шт.

2

BN314887

DECAL

Left Dash

1шт.

3

BN304524

SPEEDOMETER

Speedo, 3.38 X 80 MPH W/OD

1шт.

4

86636599

TACHOMETER

3.38 x 3K With Hourmeter

1шт.

5

BN315188

GAUGE

Assembly, Oil Temp Gauge

1шт.

6

BN2296730

GAUGE

Water Temp "Smart"

1шт.

7

BN2296752

FUEL GAUGE

1шт.

8

BN2296753

GAUGE

Voltmeter

1шт.

9

BN2296754

OIL PRESSURE GAUGE

"Smart"

1шт.

10

BN2390774

GAUGE

Air Pressure 0-150

1шт.

11

BN2293217

BUZZER

1шт.

12

BN2294958

SWITCH

Windshield Wiper

1шт.

13

BN2291956

SWITCH

Cutler Hammer

2шт.

14

BN2291214

INDICATOR LIGHT

Blue

1шт.

15

BN2291234

INDICATOR LIGHT

Red

2шт.

16

BN2394623

PLUG

Dash 1/2" #2643

6шт.

17

BN2290525

FITTING

VS68AB-4-2

1шт.

BN314988

WIRE HARNESS

L Dash, HYD. Lite

1шт.

Not shown - under dash

1шт.

BN314989

WIRE HARNESS

Left Dash, (B2F)

1шт.

Not shown - under dash

1шт.

BN314991

WIRE HARNESS

Lights, (B1F)

1шт.

Not shown - under dash

1шт.

BN314992

WIRE HARNESS

Wiper, (B8F)

1шт.

Not shown - under dash

1шт.

BN314993

WIRE HARNESS

Left Dash, Gnd

1шт.

Not shown - under dash

1шт.

BN314994

WIRE HARNESS

Left Dash, Lights

1шт.

Not shown - under dash

1шт.

NSS

NOT SOLD SEPARAT

Two Speed Axle Switch

1шт.

See Fig. 04-002

1шт.
