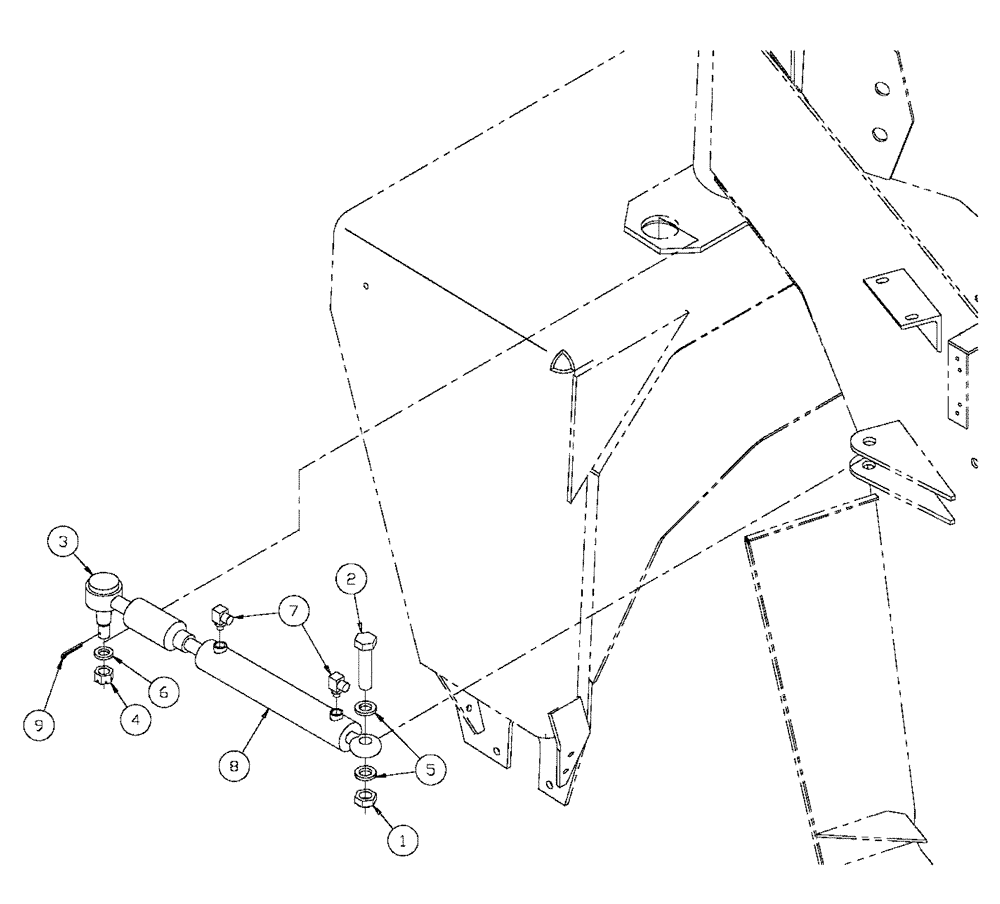

Запчасти Case IH FLX3300B (06-006) - STEERING CYLINDER ASSEMBLY (07) - HYDRAULICS

1

BN1470411F

LOCK NUT

1"-14 Flex

1шт.

2

428-1672

BOLT,Hex, 1" - 14 x 4-1/2", Gr 8

Hex, 1"-14 x 4", G8

1шт.

3

BN2290206

STUD

Ball, End L24-SV

1шт.

4

BN320210

JAM NUT

1 1/8"-12, Jam

1шт.

5

BN2298333

WASHER

Hardened 1 WA 1772

2шт.

6

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

1шт.

7

BN302557

FITTING

8MOR-6MB X 90

2шт.

8

NSS

NOT SOLD SEPARAT

Cylinder, 2 X 1 X 12, -6FB, Nitro Bar

1шт.

See Fig. 06-011

1шт.

9

BN50624

COTTER PIN

5/32 X 2

1шт.
