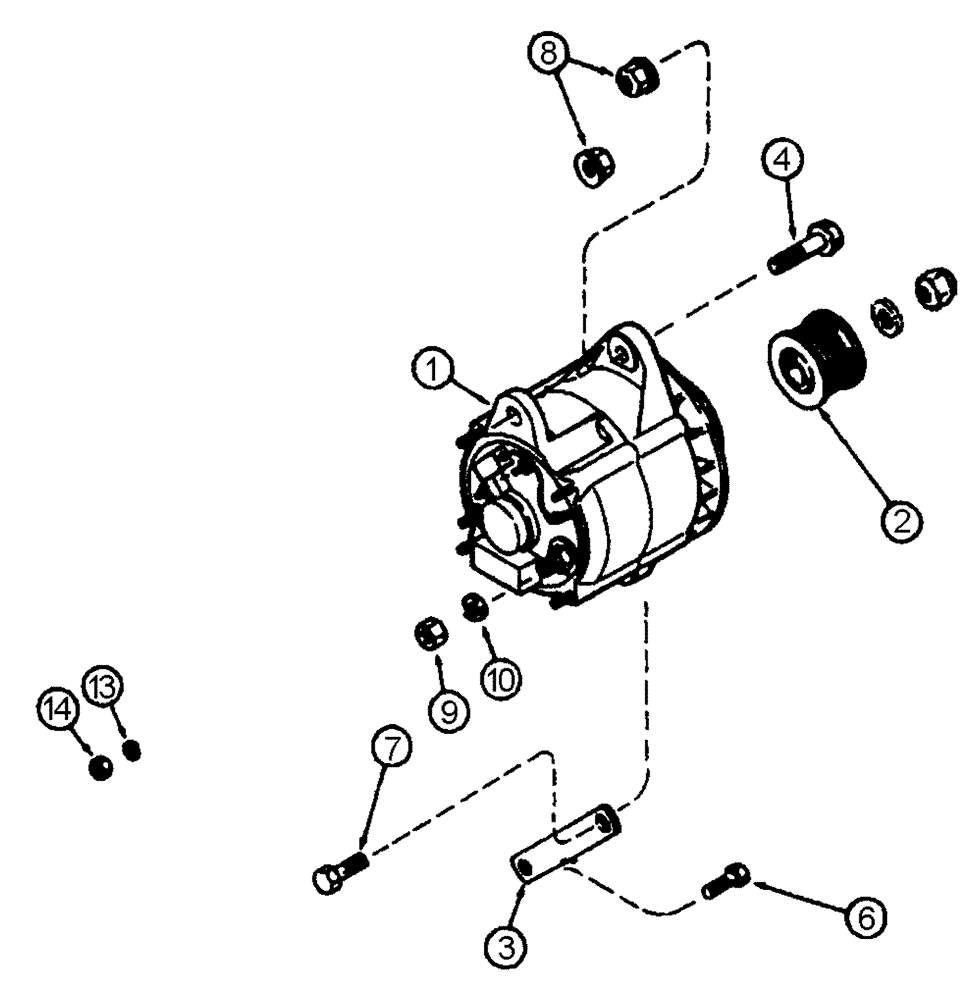

Запчасти Case IH FLX3300B (02-064) - ALTERNATOR GROUP (FLX3300B CASE ENGINE) (01) - ENGINE

1

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 Amp

1шт.

1

125849A1R

REMAN-ALTERNATOR

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Number

1шт.

1

125849A1GV

ALTERNATOR

Value, 135 amp

1шт.

2

J926860

Pulley

1шт.

3

J944407

BRACE

Alternator

1шт.

4

BN302757

BOLT

M12-1.75 X 150, HH, 10.9

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

Brace to Engine

1шт.

7

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

1шт.

8

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

1шт.

9

435-147

JAM NUT

Hex, Jam, 7/16 NC

1шт.

10

81547

LOCK WASHER,7/16"

1шт.

13

86509828

LOCK WASHER,M5

1шт.

14

87016571

NUT,M5, Cl 5

1шт.
