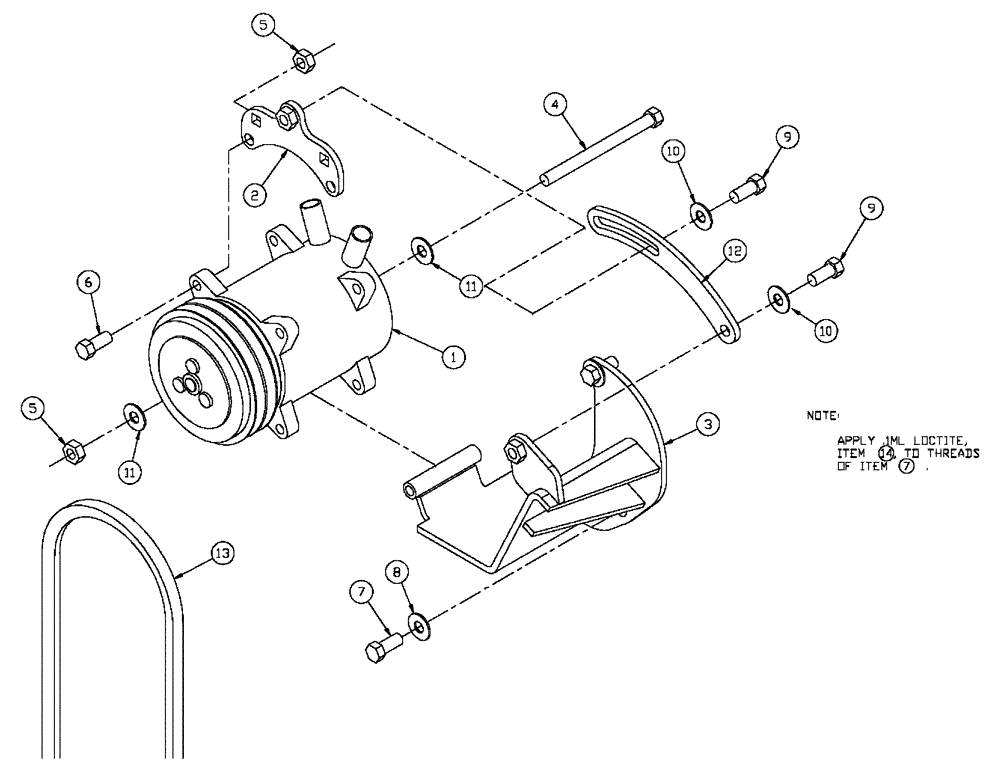

Запчасти Case IH FLX3300B (02-061) - AC COMPRESSOR GROUP (FLX3300B CAT ENGINE & FLX3330B) (01) - ENGINE

1

BN2450312

AIRCOND. COMPRESSOR,W/ Pulley

A/C SD-709

1шт.

2

BN319194

MOUNTING PLATE

A/C

1шт.

3

BN319175

MOUNTING PLATE

A/C Engine

1шт.

4

BN55356

BOLT

3/8-16 X 5, HH, G8

1шт.

5

BN315825

LOCK NUT

3/8-16, NLN, G8

3шт.

6

BN50369

3/8-16 X 1.5, HH, G8

2шт.

7

BN50666

7/16-14 X 1, HH, G5

2шт.

8

86637952

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

0.469 x 0.922 x 0.065, Hardened

2шт.

9

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

2шт.

10

BN300499

WASHER,M10, 10.9

2шт.

11

BN300175

WASHER

3/8", G8

2шт.

12

BN319173

SLIDE

A/C COMP. ADJ.

1шт.

13

BN319368

BELT

1шт.

14

BN54038

ADHESIVE

Loctite - 50 ML Bottle #262

1шт.
