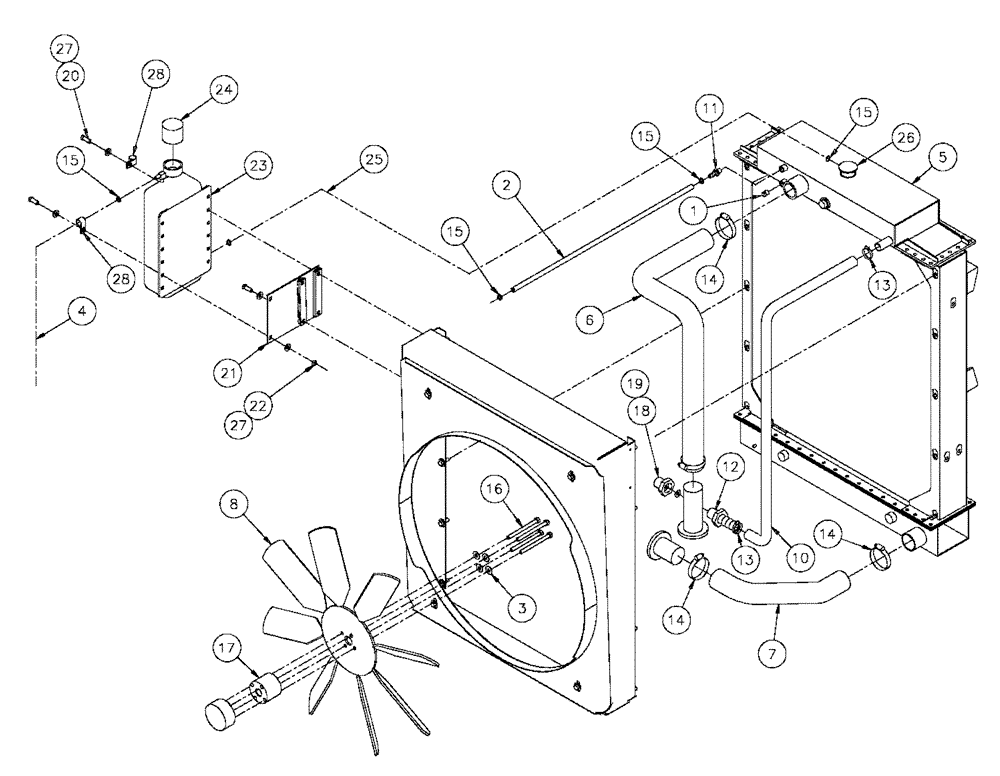

Запчасти Case IH FLX3300B (02-054) - RADIATOR COMPONENTS (FLX3300B CASE ENGINE) (01) - ENGINE

1

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

2

BN316636

HOSE,0.38" ID x 40.00", SAE 30R6, SAE 30R7

Fuel

1шт.

3

BN300499

WASHER,M10, 10.9

10шт.

4

BN314898

HOSE,0.31" ID x 50.00"

1шт.

5

BN307183

RADIATOR

30 X 36 Core

1шт.

6

342740A1

PACKAGE

Upper Radiator Hose With Clamps and Metal Tube

1шт.

7

BN314540

RADIATOR HOSE,2.25" ID x 17.19" , SAE J20, SAE 20R4

Lower

1шт.

8

BN314881

FAN

30", 300HP CDC

1шт.

9

331-512

ANTIFREEZE

mixed 50-50

55шт.

10

BN314899

HOSE,1.00" ID x 48.00", SAE 100R17, SAE 100R1, SAE 100R2

1шт.

11

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

12

BN305700

FITTING

12MP-16HB

1шт.

13

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

14

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

4шт.

15

BN76094

HOSE CLAMP

SS #M4

5шт.

16

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

17

A184751

SPACER,Fan, 74/75mm Thk

Fan, 75 mm

1шт.

18

BN317988

FITTING

12MP-12FP

1шт.

19

BN318648

ORIFICE

3/8"

1шт.

20

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

21

BN318614

BASE PLATE

Recovery

1шт.

22

86528579

NUT,M8 x 1.25

2шт.

23

87481454

BOTTLE

Tank, Coolant Recovery, 5 qt

1шт.

24

1547924C1

CAP

coolant recovery bottle

1шт.

25

BN318459

HOSE,0.31" ID x 38.00"

1шт.

26

A170241

RADIATOR CAP

15 psi

1шт.

27

BN300497

WASHER,M8, 10.9

6шт.

28

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.
