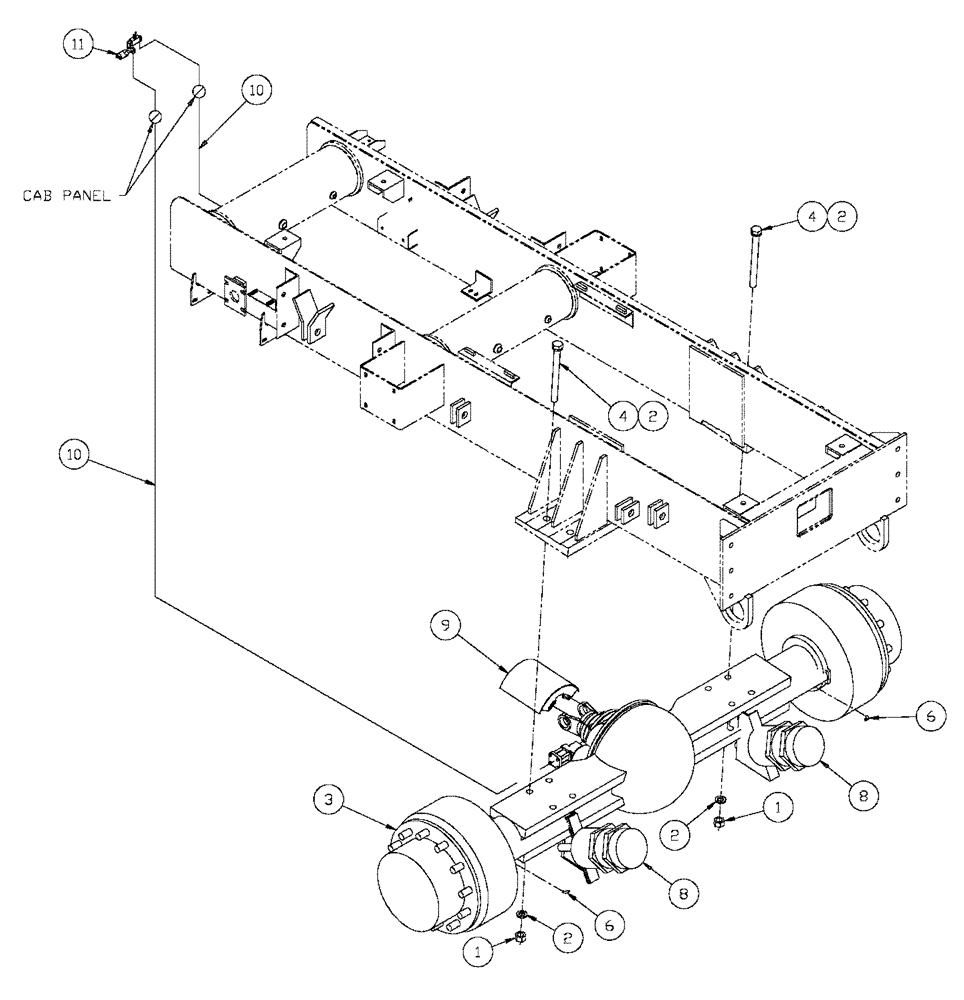

Запчасти Case IH FLX3300B (04-002) - REAR AXLE GROUP Frame & Suspension

1

BN1470411F

LOCK NUT

1"-14 Flex

8шт.

2

BN2298333

WASHER

Hardened 1 Wa1772

16шт.

3

BN2390145

AXLE

PRC674P202 Low Speed

1шт.

FLX3300B Cat Engine & FLX3330B

1шт.

3

BN2390129

PRC674P202 High Speed

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

FLX3300B Case Engine

1шт.

4

BN319750

BOLT

1-14 X 10,HH,GR8

8шт.

6

BN41288

LUBE NIPPLE

Zerk-1/8-27 X 90 Degree

2шт.

8

BN7136129

BRAKE ASSY.

Chamber Assy/Inst

2шт.

9

BN7136365

GUARD

U-Joint

1шт.

10

BN7138053

2-Speed Shift Components

1шт.

BN2290181

FITTING

0103-4-4

2шт.

Service Parts For Ref. 10

1шт.

BN2295095

TEE

012T-4-4

1шт.

Service Parts For Ref. 10

1шт.

11

NSS

NOT SOLD SEPARAT

Assembly, 2-Speed Shift Circuit

1шт.

See Fig. 07-013

1шт.
