(02-048) - CHARGE AIR COOLER TUBES GROUP (FLX3330B)

Запчасти Case IH FLX3300B (02-048) - CHARGE AIR COOLER TUBES GROUP (FLX3330B) (01) - ENGINE

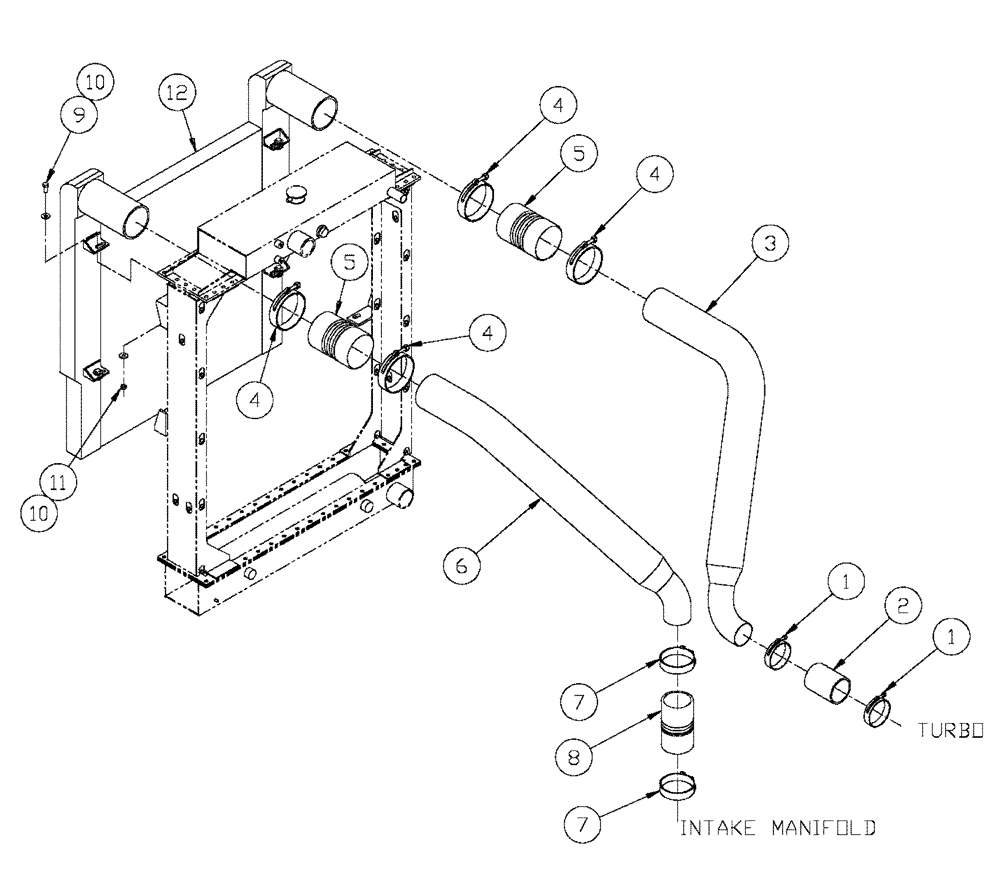

Схема запчастей Case IH FLX3300B - (02-048) - CHARGE AIR COOLER TUBES GROUP (FLX3330B) (01) - ENGINE
4
3
4
7
9
1
8
11
12
7
10
4
5
10
4
6
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN300333

CLAMP

Constant Torque,3.00"

2шт.

2

BN2390864

HOSE

CAC 2.75"

1шт.

3

BN2402062

TUBE

Turbo Pressure Side

1шт.

4

BN300760

CLAMP

Constant Torque, 4.25"

4шт.

5

BN2390871

HOSE

CAC 4" Series 367

2шт.

6

BN2402061

TUBE

Turbo Return Side

1шт.

7

BN300759

CLAMP

Constant Torque, 3.25"

2шт.

8

BN2390865

HOSE

CAC 3" 367 Series

1шт.

9

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

10

140017

WASHER,M10 x 20mm OD x 2mm Thk

8шт.

11

412141

NUT,M10 x 1.5, Cl 8

4шт.

12

BN314594

COOLER ASSY.

Charge Air, CDC

1шт.
