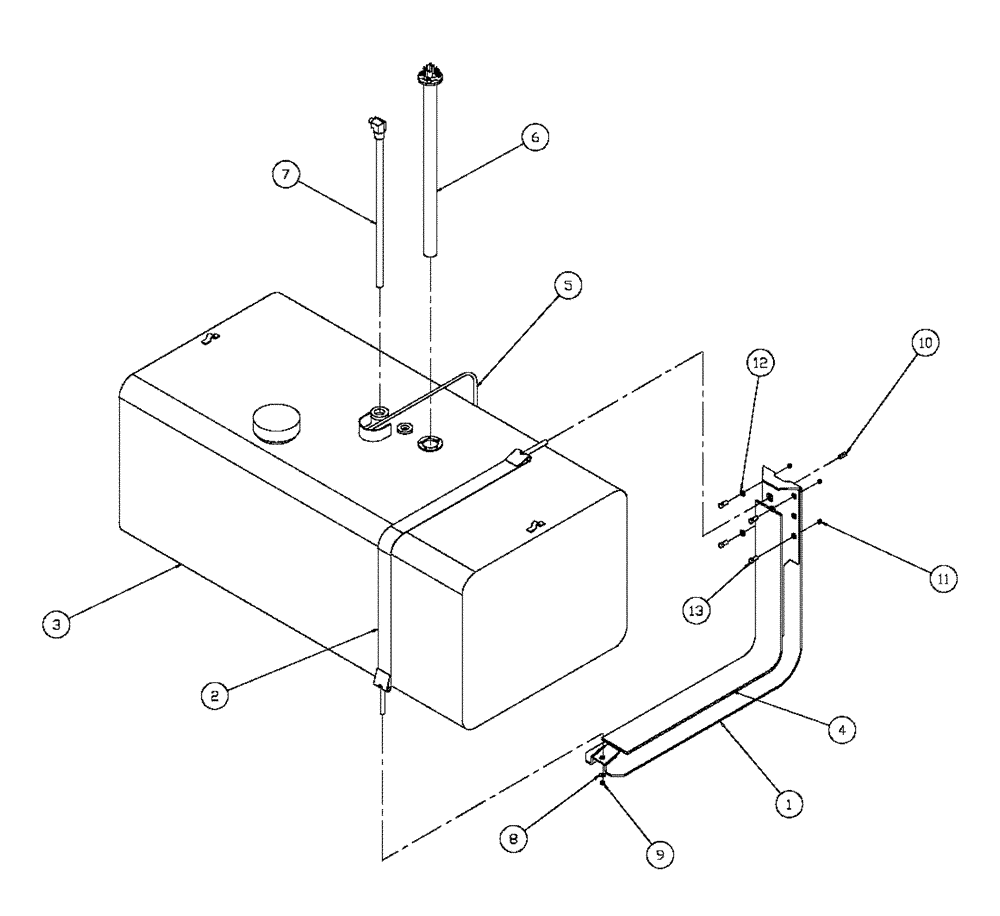

Запчасти Case IH FLX3300B (02-039) - FUEL TANK GROUP (01) - ENGINE

1

87267439

BRACKET, SUPPORTING

Fuel Tank

3шт.

2

BN2395008-002

STRAP

Assembly, Fuel Tank

3шт.

3

BN307678

TANK

Fuel 150 Gallon

1шт.

BN2395003-003

CAP

Fuel Cap, 878

1шт.

Service Parts For Ref. 3

1шт.

BN2395003-004

GASKET

For Fuel Cap

1шт.

Service Parts For Ref. 3

1шт.

4

87484460

BELT,76.67 mm W x 6096.00 mm L

4 Ply, Cut To Fit

15шт.

5

BN2390873

HOSE,0.31" ID

Fuel, 815-25R

4шт.

6

BN306489

ASSEMBLY

Fuel Tube Type, 20"

1шт.

7

BN7133010

TUBE

Fuel P/U

1шт.

8

BN50155

WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk

5/8", G5

3шт.

9

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

3шт.

10

BN2395003-005

NUT

Fuel Tank Strap

3шт.

11

100038

NUT,M12 x 1.75, Cl 8

12шт.

12

BN300500

WASHER,M12, 10.9

24шт.

13

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

12шт.
