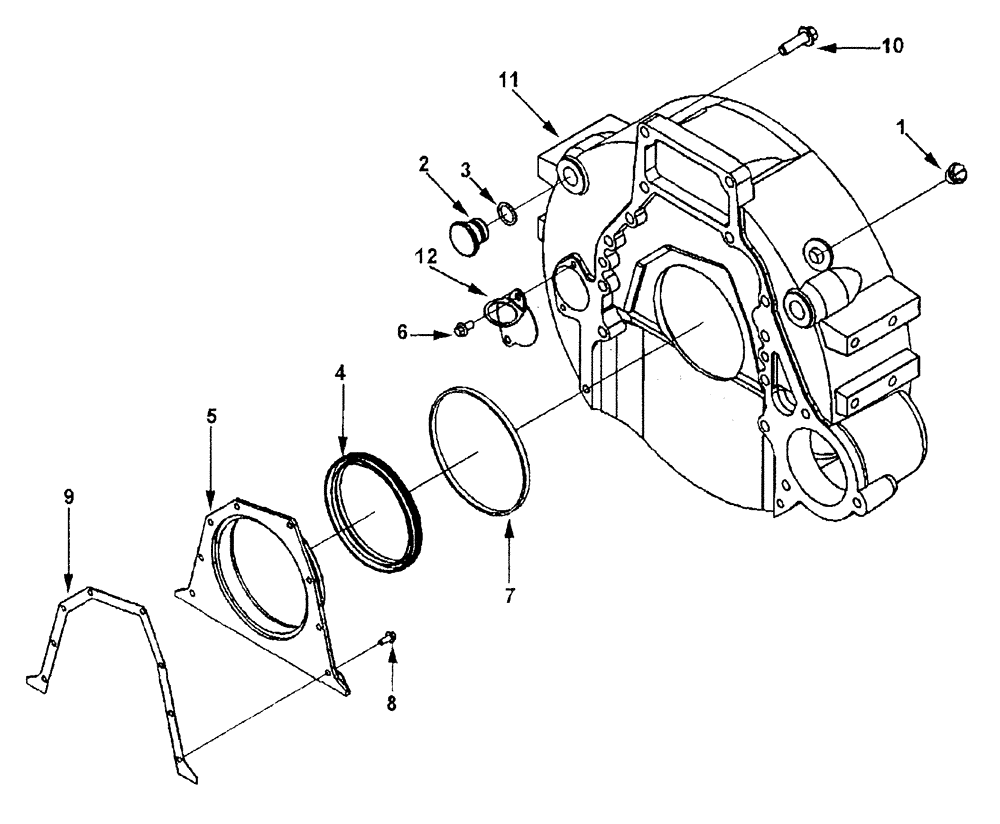

Запчасти Case IH FLX3300B (02-031) - FLYWHEEL HOUSING (FLX3300B CASE ENGINE) (01) - ENGINE

1

J904181

PLUG

Threaded

1шт.

2

J910248

PLUG

O-Ring

1шт.

3

J910260

O-RING

Seal

1шт.

4

J933262

OIL SEAL,130mm ID x 150.44mm OD x 14.73mm Thk

Kit, Rear Crank-Seal Service (Should Not Be Required, Seal)

1шт.

J933384

REAR COVER

1шт.

Included In Cover, Ref. 5

1шт.

5

J911699

Rear (Includes Seal)

1шт.

6

J912072

SELF-TAP SCREW

2шт.

7

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Rectangular Ring

1шт.

8

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

8шт.

9

J914301

GASKET

Rear Cover

1шт.

10

J920447

FLANGE BOLT,M12 x 40mm, Cl 10.9

Hex Flange Head

12шт.

11

J906689

HOUSING

Flywheel

1шт.

12

J925234

PLATE

Cover

1шт.
