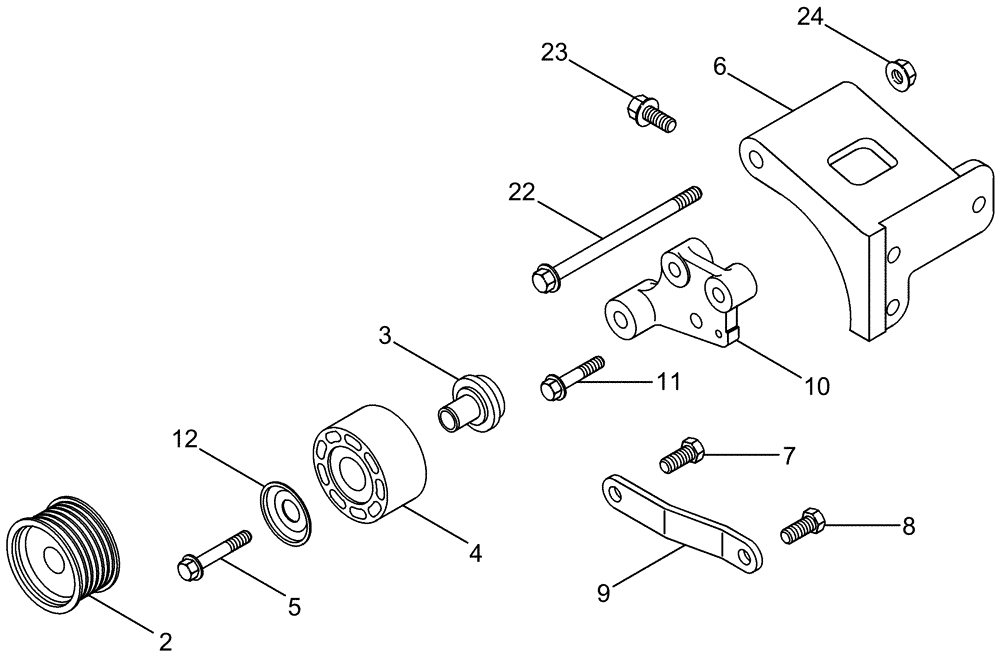

Запчасти Case IH FLX3020 (04-03) - ALTERNATOR - MOUNTING (06) - ELECTRICAL SYSTEMS

2

J965146

PULLEY

1шт.

87452704 Can be used per engineering, but has a keyway

1шт.

3

J935229

SHAFT

Idler

1шт.

4

87531752

PULLEY

idler

1шт.

5

87531758

BOLT

1шт.

6

J944405

SUPPORT

Alternator

1шт.

7

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

8

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

1шт.

9

J944407

BRACE

1шт.

10

87531751

SUPPORT

idler pulley

1шт.

11

87531764

BOLT

3шт.

12

87531753

SHIELD

dust

1шт.

22

844-12150

BOLT,Hvy Hex, M12 x 150mm, Cl 8.8

1шт.

23

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

24

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

1шт.
