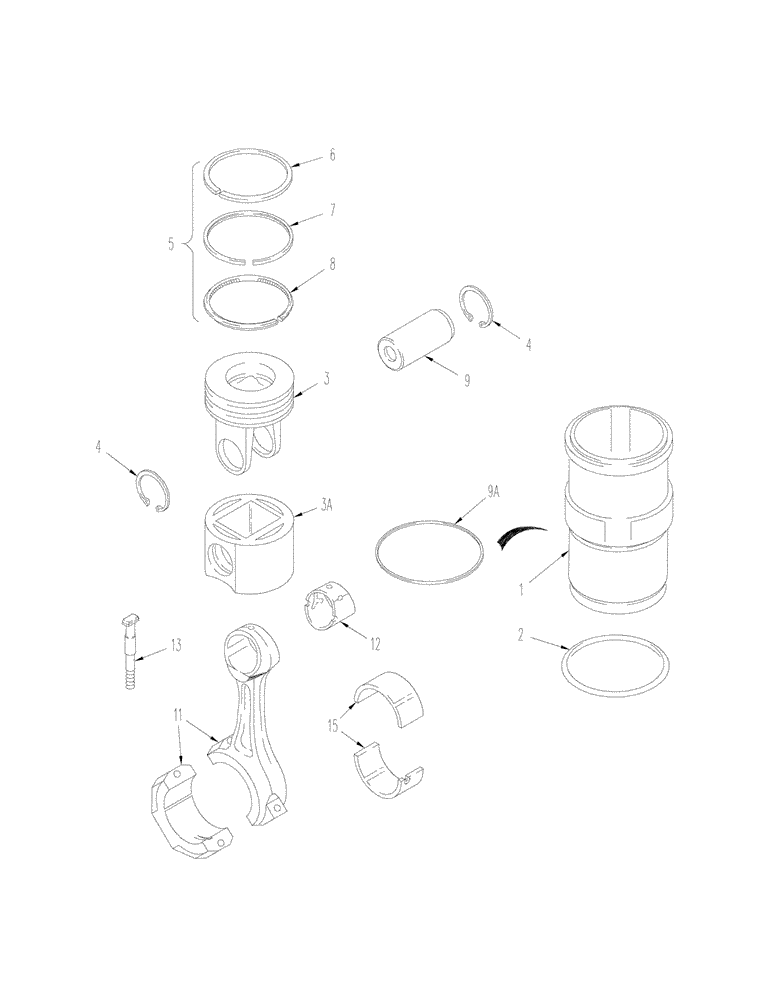

Запчасти Case IH FLX3020 (02-15) - PISTONS - CONNECTING RODS (01) - ENGINE

87538107

KIT

KIT & Sleeve, Standard, Inc. 1-8

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1.75", Int., #175

1шт.

87538096

KIT

KIT Inc. 3 - 5

6шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

3a

J966721

SKIRT

Skirt, Piston

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

87343194

PISTON RINGS KIT

Inc. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

87342670

PISTON PIN

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

87356732

REMAN-CONNECTING ROD

Remanufacture, N.A. Only

1шт.

87686998R

REMAN-CONNECTING ROD

FLX3020 (6/06-), Reman for New PN 87356732

1шт.

87686998C

CORE-ROD CONNECTING

Return Number

1шт.

87356548

CONNECTING ROD

Inc. 11 - 13

6шт.

87686998R

REMAN-CONNECTING ROD

FLX3020 (6/06-), Reman for New PN 87356548

6шт.

87686998C

CORE-ROD CONNECTING

Return Number

1шт.

11

NSS

NOT SOLD SEPARAT

Rod

1шт.

12

87343250

BUSHING,45.03mm ID x 49mm OD x 43mm L

1шт.

13

J944679

BOLT

2шт.

15

87356776

BEARING LINER

Bearing Liner, Standard

6шт.

15

84156219

BEARING LINER

Bearing Liner, Undersize 0,25 mm

6шт.

15

84156220

BEARING SET

Bearing Liner, Undersize 0,50 mm

6шт.

15

84156221

BEARING SET

Bearing Liner, Undersize 0,75 mm

6шт.

15

84156222

BEARING SET

Bearing Liner, Undersize 1,00 mm

6шт.
