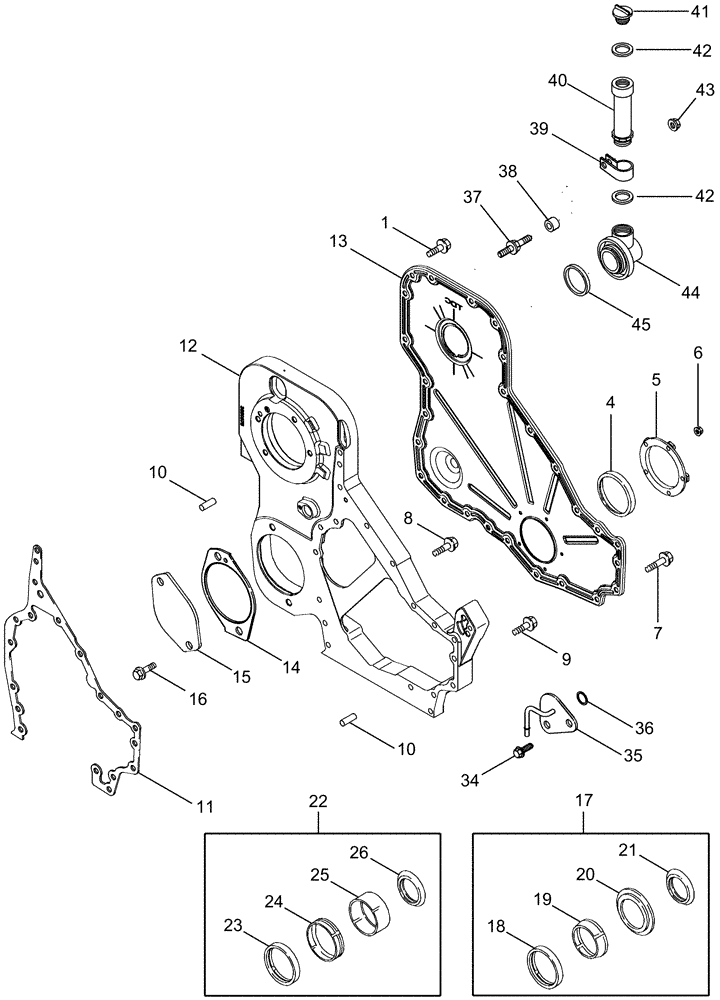

Запчасти Case IH FLX3020 (02-10) - FRONT GEAR COVER (01) - ENGINE

1

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790 or A77808

1шт.

5

J941786

CARRIER

1шт.

6

J938077

LOCK NUT

M6

5шт.

7

J926863

FLANGE BOLT

Hex Flange, 8 - 1.25 X 50 MM, Class 10.9

11шт.

8

J943885

BOLT

M8 x 40

3шт.

9

J926846

FLANGE BOLT

Hex Flange, 8 - 1.25 X 20 MM, Class 10.9

3шт.

11

J944293

GASKET,1.01mm Thk

1шт.

12

87349295

HOUSING

1шт.

13

87350310

COVER

1шт.

14

J940245

GASKET,1.27mm Thk

1шт.

15

J940246

COVER

Accessory Drive

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

17

A77790

SEAL KIT

Crankshaft, Front, Inc. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

Seal

1шт.

19

NSS

NOT SOLD SEPARAT

Tool

1шт.

20

NSS

NOT SOLD SEPARAT

Tool

1шт.

21

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

22

A77808

SERVICE KIT

Crankshaft, Front, Inc. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Oil, Oversized

1шт.

24

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

25

NSS

NOT SOLD SEPARAT

Tool

1шт.

26

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

27

J920706

PLUG

(Not Shown)

1шт.

28

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

(Not Shown)

2шт.

29

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC (Not Shown)

1шт.

34

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

35

87358314

3 WAY CONNECTION

CONNECTION Oil Drain

1шт.

36

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

37

J921816

SPECIAL BOLT

1шт.

38

J943408

SPACER

1шт.

39

A77695

MOUNTING CLIP

1шт.

40

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

Oil Fill Extension

1шт.

41

J914136

CAP

1шт.

42

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

2шт.

43

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

44

J921644

ADAPTER

Oil Filter

1шт.

45

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.
