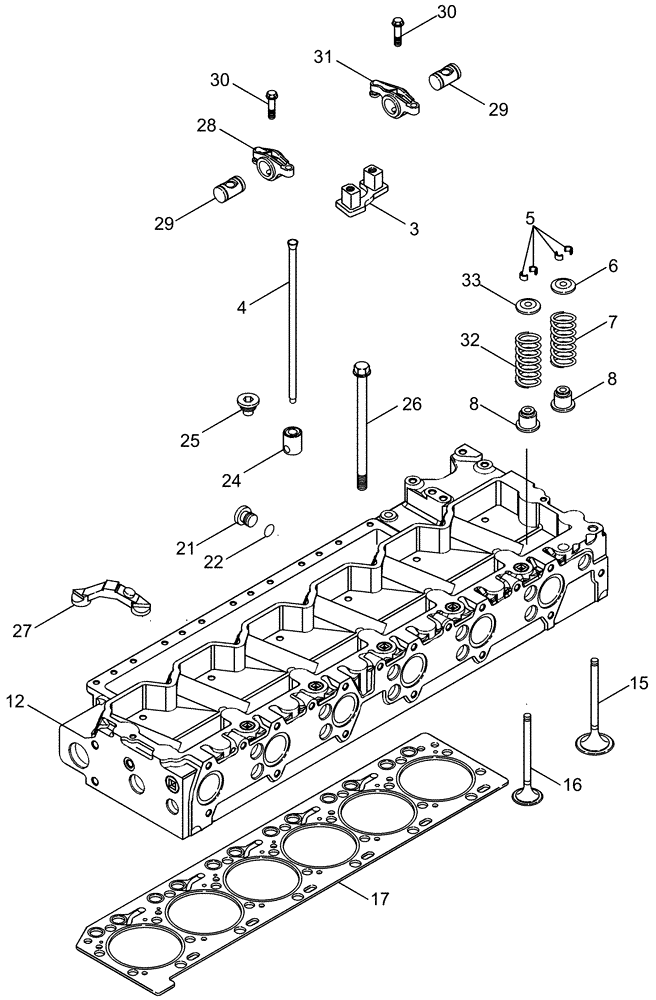

Запчасти Case IH FLX3020 (02-09) - CYLINDER HEAD - VALVE MECHANISM (01) - ENGINE

87397977

KNIFE HEAD

HEAD ASSY With Valves, Inc. 5 - 8, 12, 15, 16, 32, 33

1шт.

3

J941140

SUPPORT

6шт.

4

87435955

PUSH ROD

12шт.

5

J900250

SCREW

Collet

48шт.

6

J944452

RETAINER

Valve Spring

12шт.

7

J944711

VALVE SPRING

Intake Valve

12шт.

8

87352235

SEAL

12шт.

8

J943888

SEAL

12шт.

12

NSS

NOT SOLD SEPARAT

HEAD ASSY, Stripped

1шт.

15

87343688

STD INLET VALVE

STD ENGINE INLET VALVE Inlet

12шт.

16

87343693

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE Exhaust

12шт.

17

87344132

CYLINDER HEAD GASKET

1шт.

21

J678923

PLUG,M10 x 1

10 mm, Inc. 22

1шт.

22

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

24

87435851

TAPPET

12шт.

25

87435854

GUIDE

12шт.

26

87344126

BOLT

M14 x 160

26шт.

27

J943445

CROSSBAR

12шт.

28

87435953

ROCKER ARM

6шт.

29

87435951

SHAFT

6шт.

30

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

12шт.

31

87435952

ROCKER ARM

6шт.

32

87351063

VALVE SPRING

Exhaust

12шт.

33

87351062

VALVE

Rotator

12шт.
