Запчасти Case IH FLX3020 (02-06) - OIL PUMP - OIL PAN HEATER KIT (01) - ENGINE

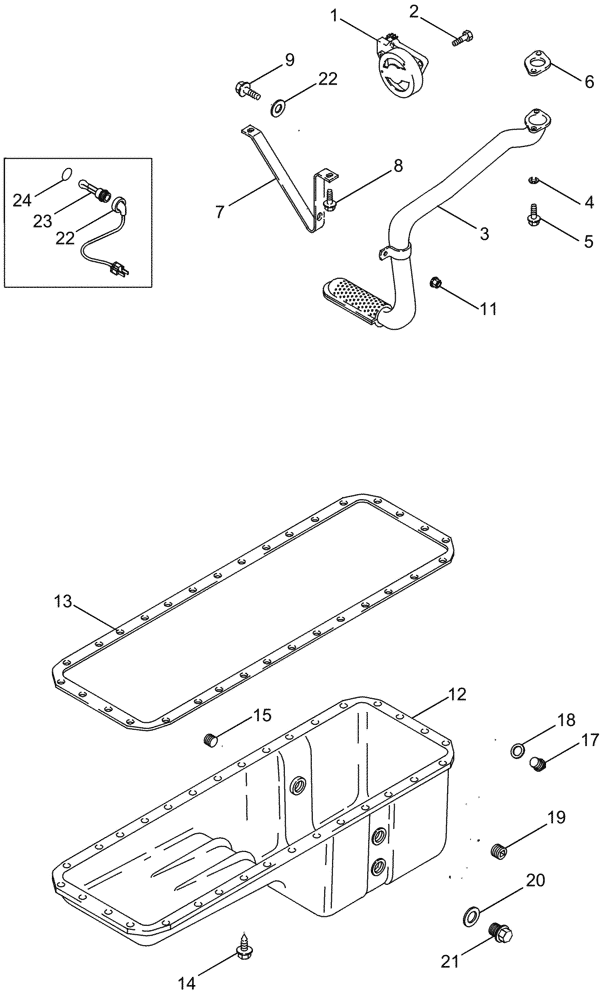

Схема запчастей Case IH FLX3020 - (02-06) - OIL PUMP - OIL PAN HEATER KIT (01) - ENGINE
3
14
5
24
20
22
15
23
6
19
17
2
21
11
9
22
8
7
18
13
1
4
12

Артикул

Название

Примечание

Количество

1

J991123

ENGINE OIL PUMP

1шт.

1

JR991123

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP N.A. Only

1шт.

1

JC991123

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J944264

TUBE,1.25" OD

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

87447959

GASKET,1.2mm Thk

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

10

J910960

WASHER

1шт.

11

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

12

87357469

ENGINE OIL PAN

1шт.

13

87308050

GASKET,0.95mm Thk

1шт.

14

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

32шт.

15

J924148

PLUG,M22 x 1.5

M22

1шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924147

PLUG,M18 x 1.5

M18

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

21

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1-1/4 in

1шт.

A77580

SERVICE KIT

Heater, 120V, Inc. 22 and 23

1шт.

22

J906388

HEATING ELEMENT

1шт.

23

196466A1

ELECTRIC CABLE

1829 mm (72 in.)

1шт.

A77666

SERVICE KIT

Heater, 240V, Inc. 22 and 23

1шт.

22

J906389

HEATING ELEMENT

1шт.

23

J905114

ELECTRIC CABLE

1829 mm (72 in.)

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

Выбрано товаров: 29
