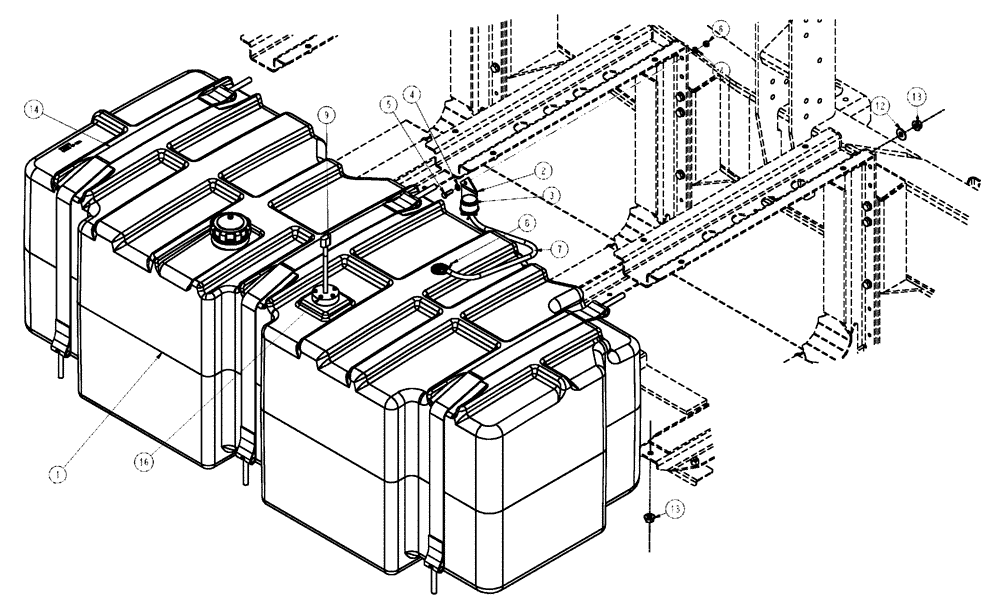

Запчасти Case IH FLX3010 (02-009) - FUEL TANK GROUP (01) - ENGINE

1

87269155

TANK

Assembly, 150 Gallon Fuel With Parts

1шт.

2

87269750

BRACKET, SUPPORTING

Mount, Fuel Tank Vent

1шт.

3

86999949

FUEL FILTER

Fuel Tank Vent

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

6

86528579

NUT,M8 x 1.25

1шт.

7

87269744

FUEL HOSE

Fuel, 1/4" id, Bulk

1шт.

Cut 22" from bulk roll

1шт.

8

86637701

HOSE CLAMP,12.45mm - 12.95mm

2шт.

9

84176270

SENSOR

fuel tank level, Start Year: 01-JUN-09

1шт.

9

86986554

SENSOR

Fuel Tank Level, Years: -01-JUN-09

1шт.

87268404

GASKET,2.4mm Thk

Fuel Sensor

1шт.

Service Parts For Ref. 9

1шт.

12

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

3шт.

13

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

3шт.

14

BN2395008-002

STRAP

Assembly, Fuel Tank

3шт.

15

BN2395003-005

NUT

Fuel Tank Strap

3шт.

16

87270794

BOLT,Hex, M5 x 30mm, SST

M5 x 30, SS

5шт.
