Запчасти Case IH FLX3010 (01-013) - CAB AIR CLEANER HOUSING AND FILTER (10) - CAB

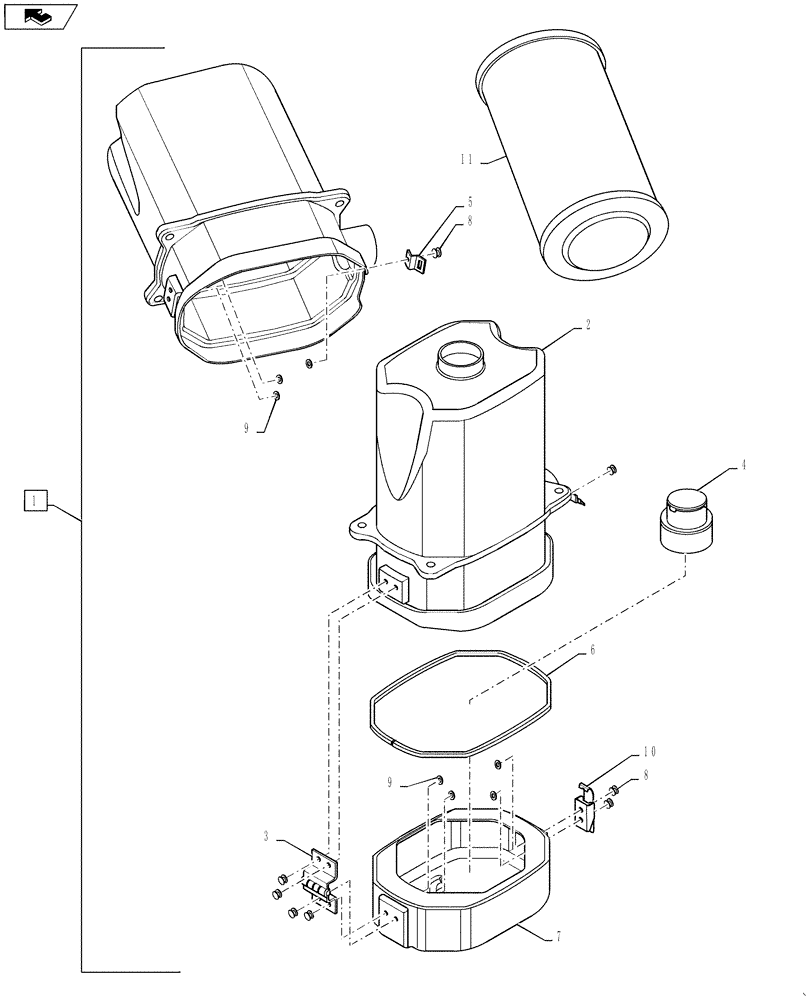

Схема запчастей Case IH FLX3010 - (01-013) - CAB AIR CLEANER HOUSING AND FILTER (10) - CAB
3
7
9
11
2
8
10
1
home
8
9
5
4
6

Артикул

Название

Примечание

Количество

1

87596194

HOUSING

Assy, Clean Air, Charcoal Filter Not Included, Order Ref. 11

1шт.

2

87596192

HOUSING

Upper Filter

1шт.

3

319969A1

HINGE

Filter Housing

1шт.

4

307016A1

COUPLING

Filter

1шт.

5

307021A2

CLIP

Keeper Overcenter

1шт.

6

87598827

RUBBER SEAL,5.08mm W x 680mm L x 4.76mm Thk

Cab Air Cleaner Box

1шт.

7

87596190

HOUSING

Filter Lower

1шт.

8

151-510

RIVET,Pop, 3/16" x .450"

7шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

7шт.

10

87596198

LATCH

Draw, W/ Secondary Catch

1шт.

11

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab Air, Charcoal

1шт.

Выбрано товаров: 11
