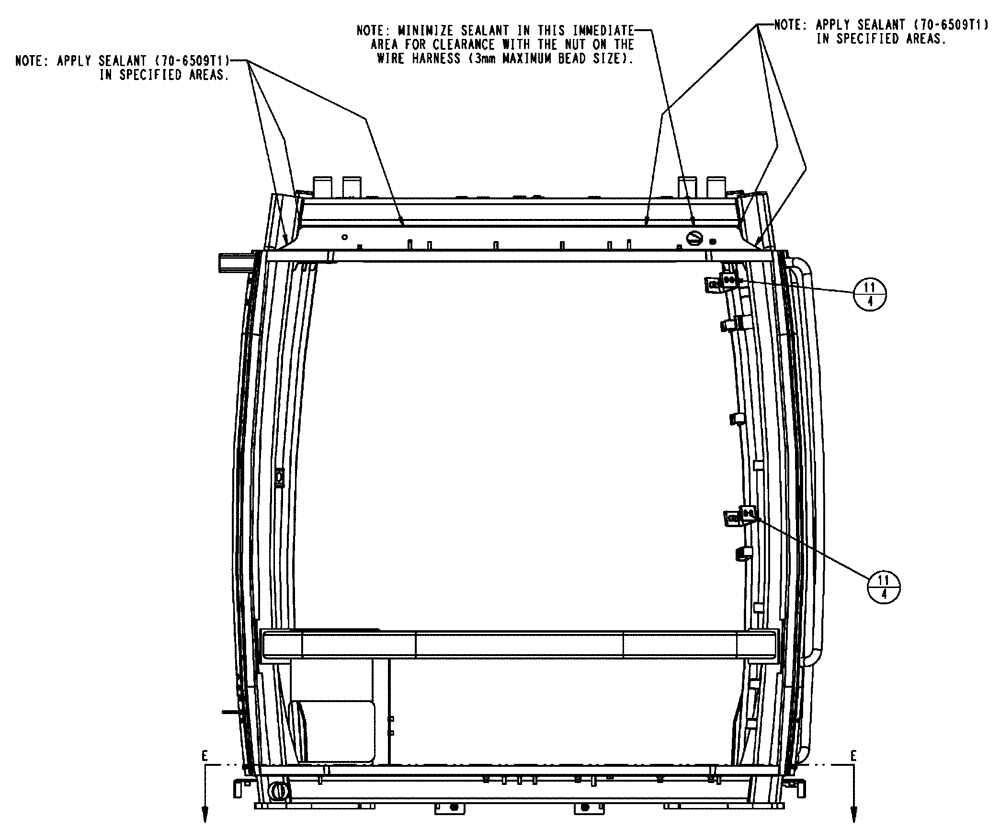

Запчасти Case IH FLX3010 (01-003[04]) - CAB EXTERIOR GROUP (10) - CAB

359319A1

CAB

Complete Cab

1шт.

1

87674720

W/Structure, NSS, Order 359319A1

1шт.

2

390360A1

SEAL

Door

2шт.

3

86637800

PLUG

button recessed nom 2.500 black

2шт.

4

442085A1

MOUNTING PARTS

Ball Stud

2шт.

5

3234063R1

BALL STUD,M10 x 1.5

stud

2шт.

6

86639049

PLUG

Cap 1/2" Hole, Black Poly

11шт.

7

353-406

PLUG,Dome, .625" hole, Nylon

1шт.

8

86625127

PLUG,Dome, .375" hole, Nylon

3шт.

9

408567A1

STUD

Threaded Captive

38шт.

10

440570A1

STUD

Threaded Captive

18шт.

11

379540A1

INSERT,M8

Threaded Knurled Open

8шт.

12

408566A1

INSERT,M8

Threaded Knurled Open

15шт.

13

404287A1

INSERT,M6

threaded knurled open

14шт.

14

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

15

70-6509T1

SEALANT

Sikaflex-221 Black Polyurethane

1шт.
