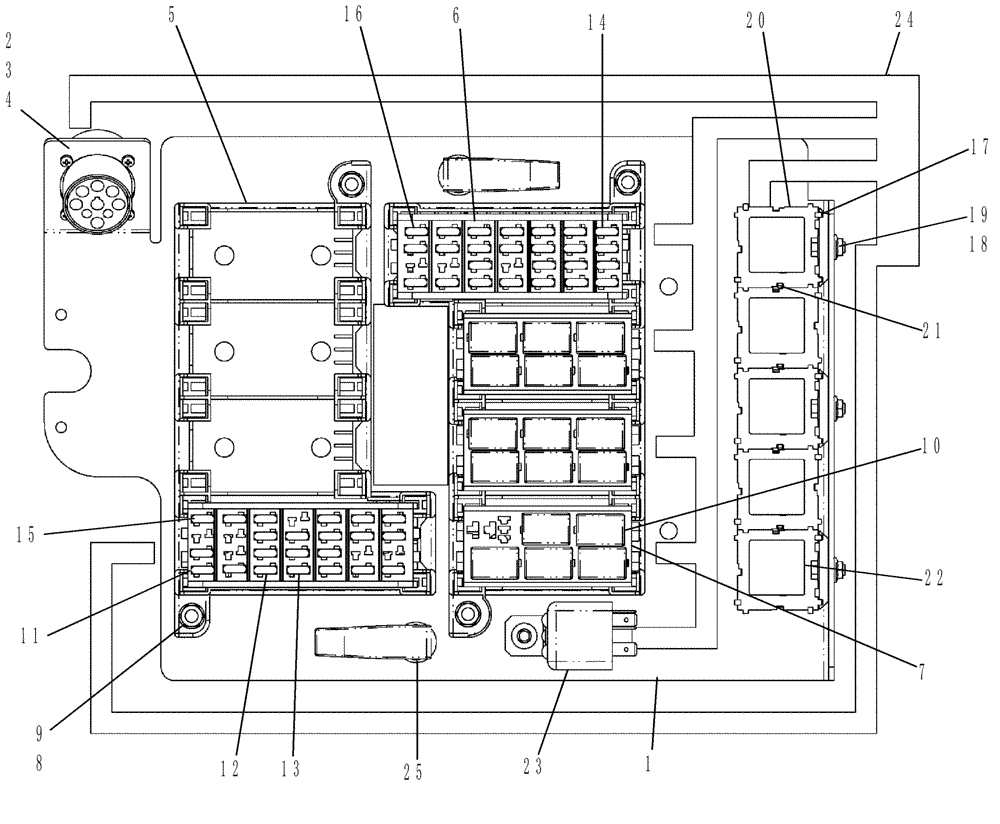

Запчасти Case IH FLX3010 (08-016) - MODULE BFC ELECTRONICS ASSEMBLY (06) - ELECTRICAL

0

87265756

MODULE

BFC Electronics Assembly

1шт.

1

418121A1

Plate Assy, Electronics Bracket

1шт.

2

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

3

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

4

824-1403

NUT,M3, Cl 5

4шт.

5

191135A1

BASE

2шт.

6

144421A1

CONNECTING BLOCK

2шт.

7

144417A1

CONNECTING BLOCK

3шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

5шт.

10

87414866

RELAY,12V, 20A

Micro

17шт.

11

121414A1

FUSE,20A, Mini, Yellow

7шт.

12

121410A1

FUSE,5A, Mini, Tan

7шт.

13

121413A1

FUSE,15A, Mini, Blue

8шт.

14

121412A1

FUSE,10A, Mini, Red

17шт.

15

121415A1

FUSE,25A, Mini, Clear

2шт.

16

121416A1

FUSE,30A, Mini, Green

6шт.

17

367147A1

BRACKET

Mounting

3шт.

18

841-4512

SCREW,Hex Washer , M5 x 12mm, Cl 4.8

3шт.

19

825-5145

NUT,M5, Flg Ser

3шт.

20

367145A1

ELEC CONNECTOR,Female, 4 Pin

Grey Terminal

5шт.

21

367146A1

WEDGE

Red Lock

4шт.

22

368459A1

RELAY,12V, 70A

70 Amp, Power

5шт.

23

1502351C1

RELAY

Headlight Dipping

1шт.

24

NSS

NOT SOLD SEPARAT

HARNESS, BFC Cab W/ Electronic Eng.

1шт.

25

342478A1

LATCH

Swell

2шт.
