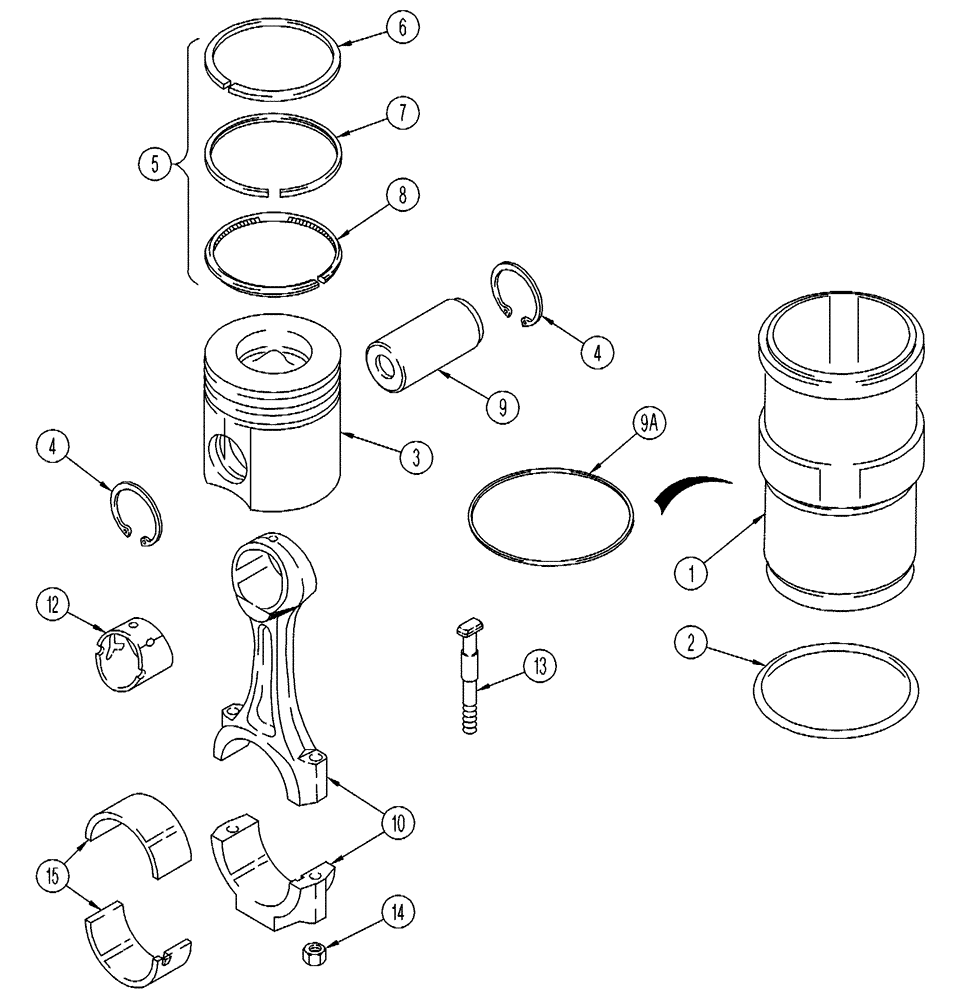

Запчасти Case IH FLX3010 (02-059) - PISTON - CONNECTING ROD, FLX 3010 (01) - ENGINE

A77970

PISTON & RINGS KIT

Standard

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing

1шт.

J800320

PISTON & RINGS KIT

Standard

1шт.

Contains Refs. 3 & 5

1шт.

3

NSS

NOT SOLD SEPARAT

Piston -

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802538

PISTON RINGS KIT

Standard

1шт.

6

NSS

NOT SOLD SEPARAT

Ring - Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring - Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring - Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

1шт.

9a

J924448

SHIM,0.762mm Thk

1шт.

9a

J924449

SHIM,1.000mm Thk

1шт.

84145656

CONNECTING ROD

With Bushing

6шт.

Includes Refs. 10 - 13

1шт.

Includes Refs. 10 - 13

1шт.

Includes Refs. 10 - 13

1шт.

84145656R

REMAN-CONNECTING ROD

With Bushing

6шт.

84145656C

CORE-ROD CONNECTING

Return Part Number, Core Connecting Rod With Bushing

6шт.

84487529R

REMAN-CONNECTING ROD

FLX3010, FLX3510 Both(8/04 - 8/06), Reman for New P/N 84145656

6шт.

84487529C

CORE-ROD CONNECTING

Return Part Number

6шт.

10

NSS

NOT SOLD SEPARAT

Rod - Connecting

1шт.

12

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

Connecting Rod

1шт.

13

J928870

ROD

connecting rod

2шт.

14

J934864

NUT

Hex, Rod Bolt

2шт.

15

87443389

BEARING LINER

Kit - Upper And Lower, Standard

6шт.

15

84156219

BEARING LINER

kit - upper and lower, 0.25 mm undersize

6шт.

15

84156220

BEARING SET

kit - upper and lower, 0.50 mm undersize

6шт.

15

84156221

BEARING SET

Kit - Upper and Lower, 0.75 mm Undersize

6шт.

15

84156222

BEARING SET

kit - upper and lower, 1.00 mm undersize

6шт.
