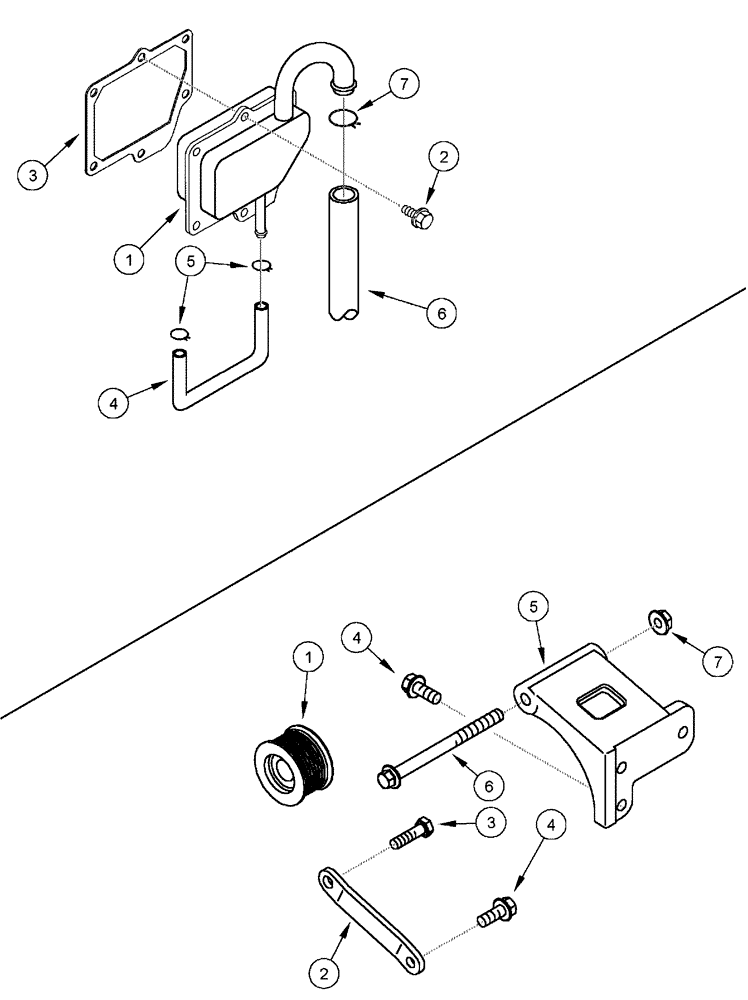

Запчасти Case IH FLX3010 (02-052) - CRANKCASE BREATHER, FLX 3010 & FLX 3510 (01) - ENGINE

1

J937652

BREATHER

Crankcase

1шт.

2

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

6шт.

3

J944683

GASKET

Breather

1шт.

4

J948068

HOSE,66.50 mm, SAE 30R7

Molded

1шт.

5

86637702

HOSE CLAMP,15.49mm - 16.26mm

2шт.

6

J944714

TUBE,320.00 mm

Plain, Flexible

1шт.

7

86637700

HOSE CLAMP,#18, 1 1/8", Spring

1шт.

1

87452704

PULLEY,70.66mm OD

Alternator

1шт.

Alternator Mounting

1шт.

2

J944407

BRACE

1шт.

Alternator Mounting

1шт.

3

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

Alternator Mounting

1шт.

4

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

Alternator Mounting

1шт.

5

J944405

SUPPORT

1шт.

Alternator Mounting

1шт.

6

86639267

BOLT,Hex, M12 x 150mm, Cl 8.8

1шт.

Alternator Mounting

1шт.

7

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

1шт.

Alternator Mounting

1шт.
