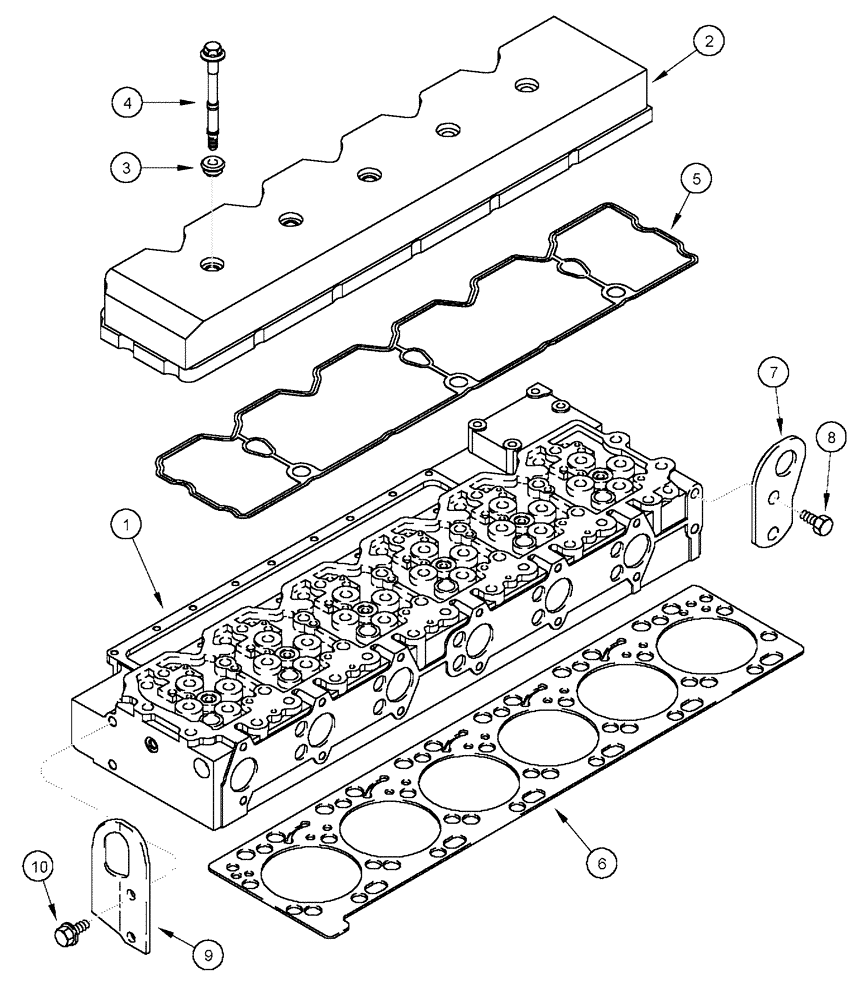

Запчасти Case IH FLX3010 (02-047) - VALVE COVER, FLX 3010 & FLX 3510 (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

Head - Cylinder

1шт.

See Figs. 02-048 And 02-049

1шт.

2

J938445

VALVE COVER

1шт.

J990876

ISOLATOR

Screw

5шт.

3

NSS

NOT SOLD SEPARAT

Isolator - Noise

1шт.

4

NSS

NOT SOLD SEPARAT

Screw- Captive Sleeve

1шт.

5

J939284

GASKET

Valve Cover

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Standard

1шт.

7

J944239

BRACKET

Lifting, Front

1шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

9

J944290

BRACKET

Lifting, Rear

1шт.

10

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.
