Запчасти Case IH FLX3010 (02-041) - TURBOCHARGER - WASTEGATE ACTUATOR, FLX 3010 (01) - ENGINE

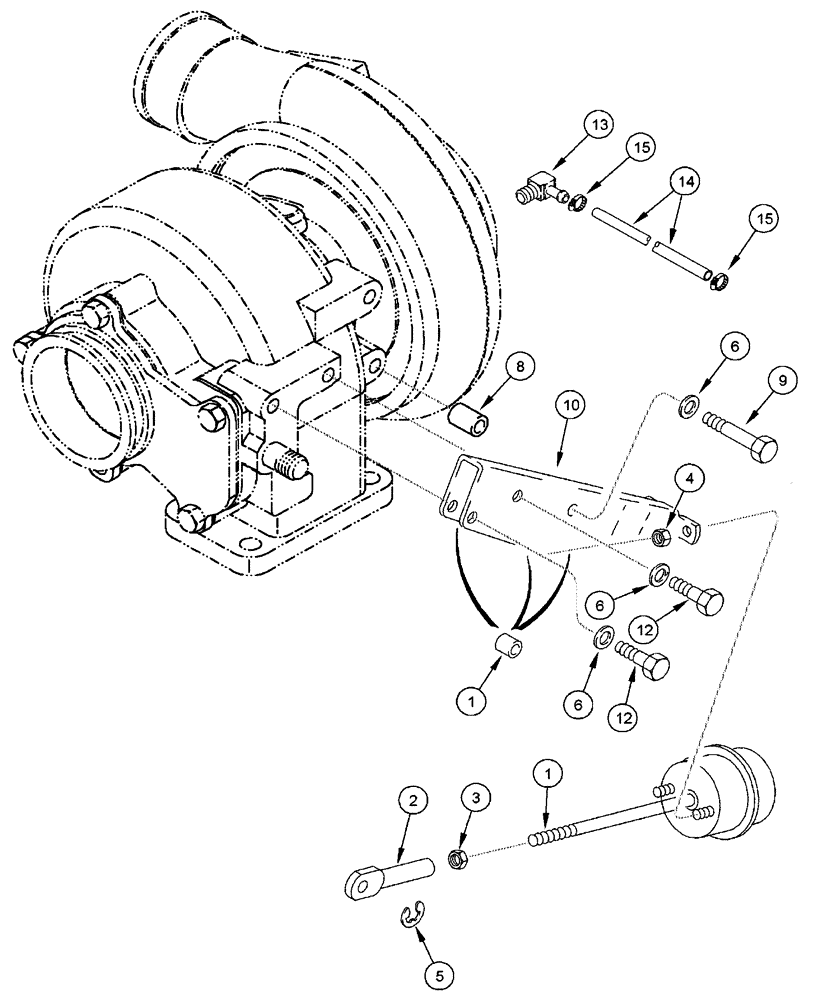

Схема запчастей Case IH FLX3010 - (02-041) - TURBOCHARGER - WASTEGATE ACTUATOR, FLX 3010 (01) - ENGINE
15
12
3
10
15
8
6
1
12
2
1
13
6
14
6
9
5

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

Kit - Turbocharger

1шт.

Includes Refs. 1 - 15. For Other Parts See Fig. 02-037 And 02-039

1шт.

1

J594348

ACTUATOR

Turbocharger

1шт.

2

J528177

LINK

Adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J528204

LOCK NUT

Lock

2шт.

5

J528221

CIRCLIP

Retaining

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

Mounting, Short

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

Mounting, Long

1шт.

9

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

10

J532671

BRACKET

Actuator

1шт.

12

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

13

J528121

ELBOW

Connector

1шт.

14

A78037

HOSE

Plain, 6.4 ID X 230 MM

1шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

Выбрано товаров: 16
