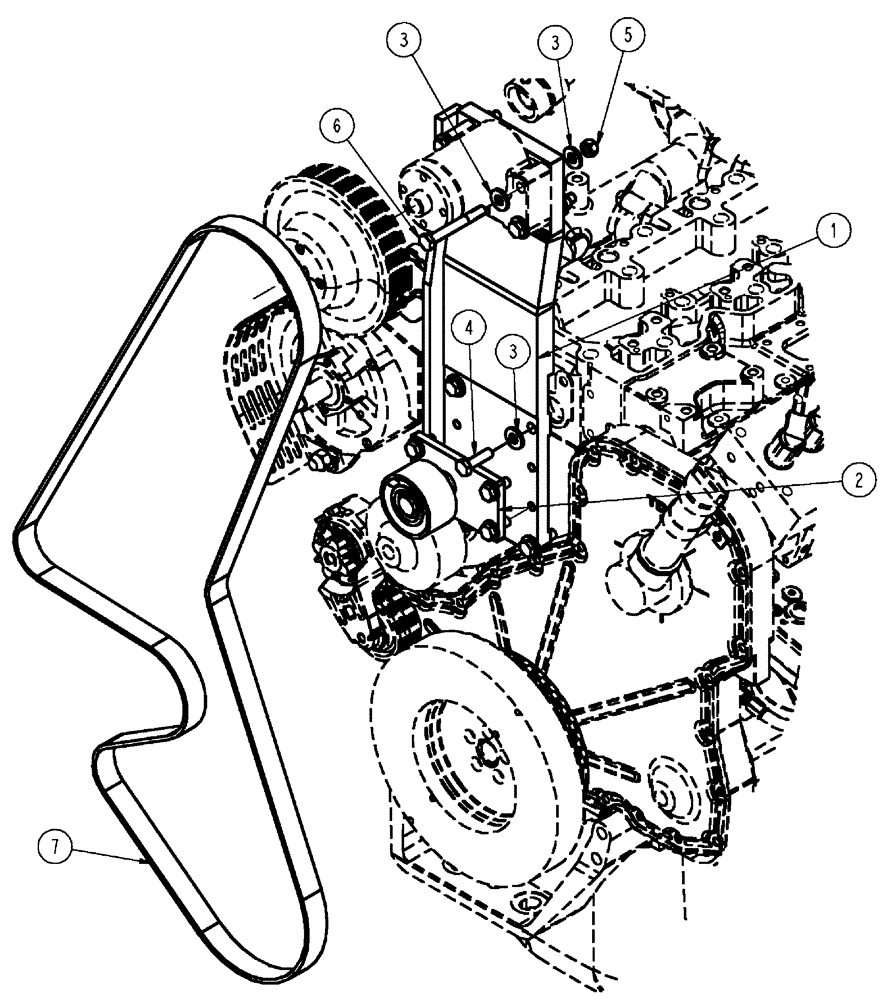

Запчасти Case IH FLX3010 (02-030) - FAN BELT DRIVE GROUP (01) - ENGINE

1

BN324094

SUPPORT

Fan Drive

1шт.

2

BN325124

Idler Pulley Group

1шт.

See Fig. 02-031

1шт.

3

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

12шт.

4

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

4шт.

7

BN325050

V-BELT,28.00 mm W x 2607.00 mm L

1шт.
