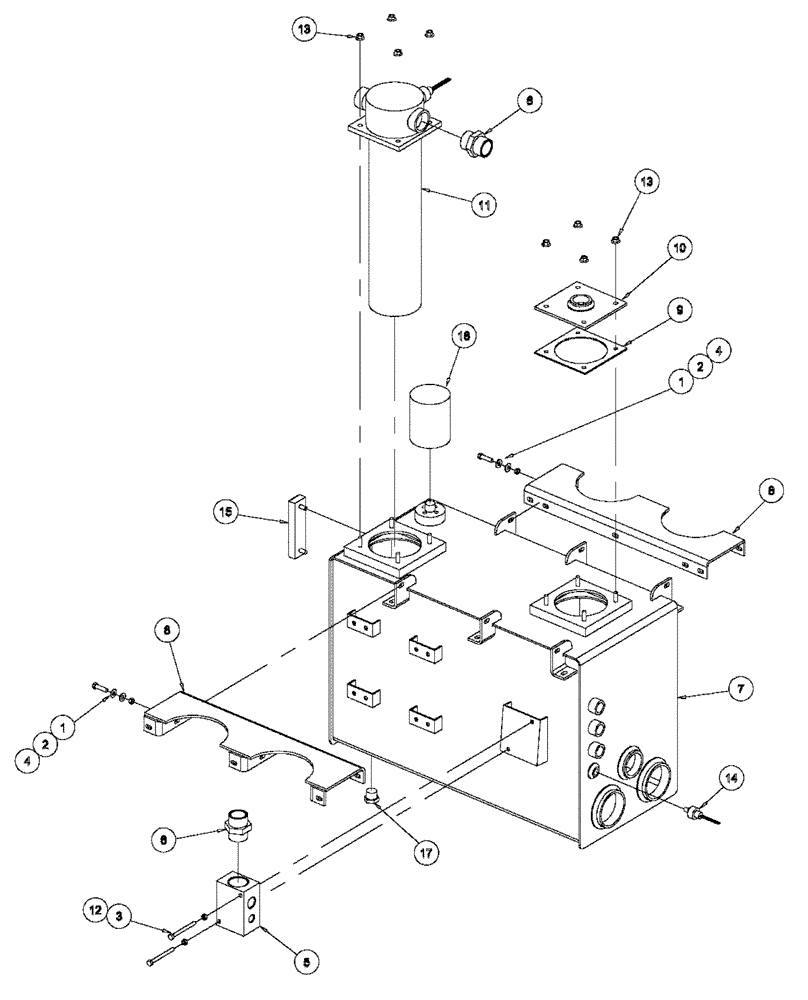

Запчасти Case IH 4375 (06-003) - HYDRAULIC TANK GROUP (07) - HYDRAULICS

1

BN300393

NUT

M10-1.5, FLN, 10.9

12шт.

2

BN300499

WASHER,M10, 10.9

24шт.

3

BN301316

M8-1.25 X 90, HH, 10.9

2шт.

4

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

12шт.

5

BN302877

MANIFOLD

Oil Return

1шт.

6

BN302898

FITTING

24Mor-24Mb

2шт.

7

BN302916

RESERVOIR, HYDRAULIC

HYD.

1шт.

8

BN302957

HYD. Tank

2шт.

9

BN302982

GASKET,3.17mm Thk

Cover Plate

1шт.

10

BN302991

COVER

Cleanout

1шт.

11

87270936

FILTER

Intank, SAE 24, 6ABS

1шт.

See Fig. 06-008

1шт.

12

BN304315

NUT

M8-1.25, FLN, 10.9

2шт.

13

BN50061

LOCK NUT

3/8"-16, G5, UNC, Whiz

8шт.

14

BN53951

THERMOSTATIC SWITCH

N.C.180 Degree

1шт.

15

BN53957

GAUGE

Sight W/Temperature

1шт.

16

BN53958

BREATHER

Spin On, Breather

1шт.

17

9841223

PLUG,1-1/16" - 12 ORB

1шт.

18

BN302983

SWITCH

Level Assembly

1шт.

Not Shown

1шт.

See Fig. 06-009

1шт.
