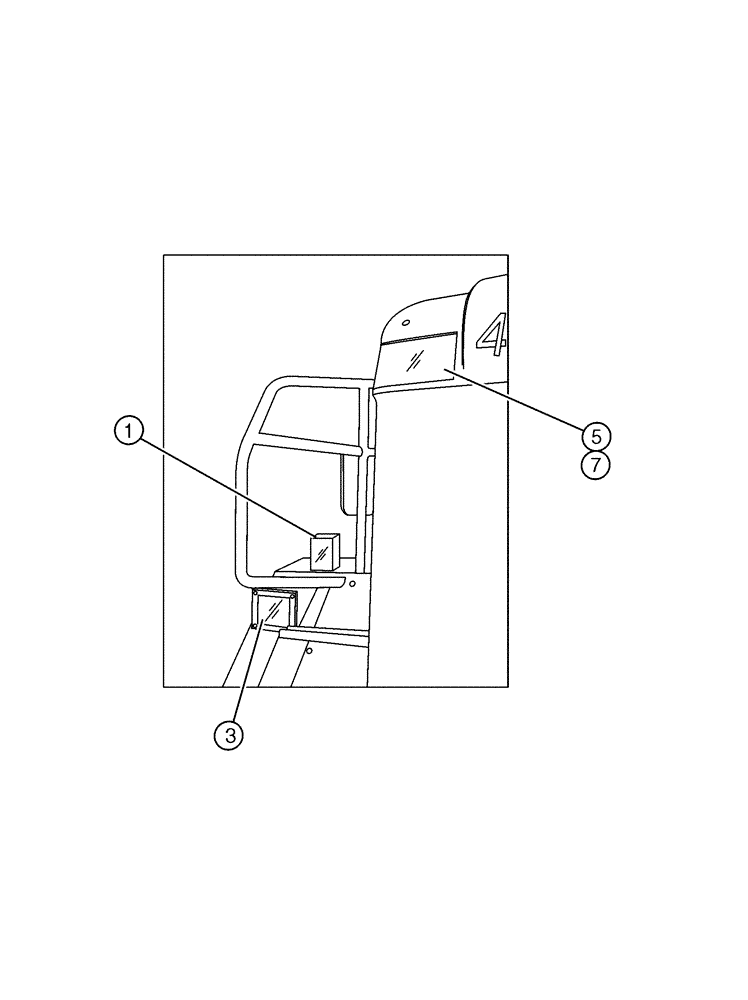

Запчасти Case IH 4375 (08-004) - LIGHT GROUP (06) - ELECTRICAL

1

BN2297232

LIGHT

Park/Turn, RH

1шт.

2

BN2297236

LIGHT

Park/Turn, LH

1шт.

Not Shown

1шт.

3

BN2297248

HEADLAMP

520/H6545 12V

2шт.

4

BN2294963

SWITCH

Stop Light

1шт.

Not Shown But Located On The Foot Brake

1шт.

5

BN300054

HEADLIGHT

Assy, RH

1шт.

5a

BN300052

HOUSING

Headlamp, RH

1шт.

Service Parts For Ref. 5

1шт.

5b

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Service Parts For Ref. 5

1шт.

5c

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Service Parts For Ref. 5

1шт.

6

BN300055

HEADLIGHT

Assembly, LH

1шт.

Not Shown

1шт.

6a

BN300055

HEADLIGHT

Assembly, LH

1шт.

Service Parts For Ref. 6

1шт.

6b

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Service Parts For Ref. 6

1шт.

6c

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Service Parts For Ref. 6

1шт.

7

NSS

NOT SOLD SEPARAT

Harness, Hood Lights

1шт.

Not Shown

1шт.

See Fig. 08-001

1шт.

8

NSS

NOT SOLD SEPARAT

Harness, Main Light

1шт.

Not Shown

1шт.

See Fig. 08-001

1шт.

9

NSS

NOT SOLD SEPARAT

Harness, Headlight (Not Shown)

1шт.

Not Shown

1шт.

See Fig. 08-001

1шт.
