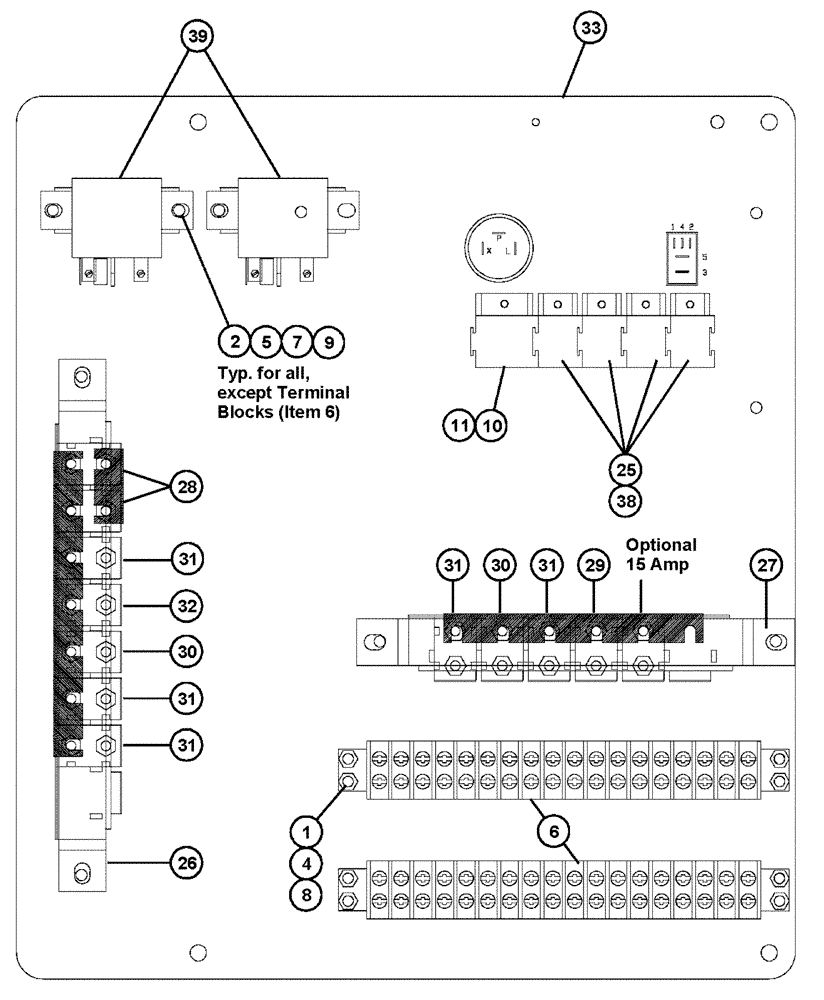

Запчасти Case IH 4375 (08-002) - ELECTRICAL PANEL ASSEMBLY (06) - ELECTRICAL

1

BN1470806

8-32 Machine

8шт.

2

BN1470808

NUT

#10-32 Machine Zinc

10шт.

3

BN16287

RELAY

Hella, STDP 30A

1шт.

Not Shown

1шт.

4

BN1914058

SCREW,Pan Hd, #8 - 32 x 5/8"

Panhead 8-32 X 5/8

8шт.

5

BN1914059

SCREW,#10 - 32 x 5"

Machine Pan 10/32 X 5

10шт.

6

BN2295088

TERMINAL STRIP

Strip 18-141

2шт.

7

BN2303142

PLATE

10, FW, SAE

10шт.

8

BN2303406

LOCK WASHER

#8

8шт.

9

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

10шт.

10

BN29525

FLASHER UNIT

3 Terminal

1шт.

11

BN303229

RELAY

1шт.

12

NSS

NOT SOLD SEPARAT

Harness, Engine Circuits (A1F)

1шт.

See Fig. 08-003

1шт.

13

NSS

NOT SOLD SEPARAT

Harness, Reload Circuits (A2F)

1шт.

See Fig. 08-003

1шт.

14

NSS

NOT SOLD SEPARAT

Harness, Light Circuits (A3F)

1шт.

See Fig. 08-003

1шт.

15

NSS

NOT SOLD SEPARAT

Harness, Washer Circuits

1шт.

See Fig. 08-003

1шт.

16

NSS

NOT SOLD SEPARAT

Harness, L Dash LTS (B1M)

1шт.

See Fig. 08-003

1шт.

17

NSS

NOT SOLD SEPARAT

Harness, L Dash (B2M)

1шт.

See Fig. 08-003

1шт.

18

NSS

NOT SOLD SEPARAT

Harness, Cruise & (B3M)

1шт.

See Fig. 08-003

1шт.

19

NSS

NOT SOLD SEPARAT

Harness, R Dash Circuits(B4M)

1шт.

See Fig. 08-003

1шт.

20

NSS

NOT SOLD SEPARAT

Harness, Dimmer Circuits (B5F)

1шт.

See Fig. 08-003

1шт.

21

NSS

NOT SOLD SEPARAT

Harness, Ing Circuits (B6F)

1шт.

See Fig. 08-003

1шт.

22

NSS

NOT SOLD SEPARAT

Harness, Turn Lits (B7F)

1шт.

See Fig. 08-003

1шт.

23

NSS

NOT SOLD SEPARAT

Harness, Wiper Circuits (B8M)

1шт.

See Fig. 08-003

1шт.

24

NSS

NOT SOLD SEPARAT

Harness, MISC. Epanel Wire

1шт.

See Fig. 08-003

1шт.

25

BN304937

RELAY

4шт.

26

BN304957

Circuit (8)

1шт.

27

BN304958

Circuit (6)

1шт.

28

BN304959

CIRCUIT BREAKER

40A T-1

2шт.

29

BN304960

CIRCUIT BREAKER

10A T-1

1шт.

30

BN304961

CIRCUIT BREAKER

15A T-1

2шт.

31

BN304962

CIRCUIT-BREAKER

20 Amp Type 1

6шт.

32

BN304963

CIRCUIT BREAKER

25A T-1

1шт.

33

BN304967

CONTROL PANEL

Electical

1шт.

34

BN305011

BOLT

#5-40 X .50, PH, G2

5шт.

Not Shown

1шт.

35

BN305012

BOLT

#5-40, HN, G2

5шт.

Not Shown

1шт.

36

BN305013

LOCK WASHER

#5, LW, G2

5шт.

Not Shown

1шт.

37

BN305028

CLAMP

Cushion, Waytech 25163

1шт.

Not Shown

1шт.

38

BN7132103-001

RELAY

Micro (Positive/RL1-RL4)

4шт.

39

BN7132103-002

RELAY

Power (Pos/RL5 & RL6)

2шт.
