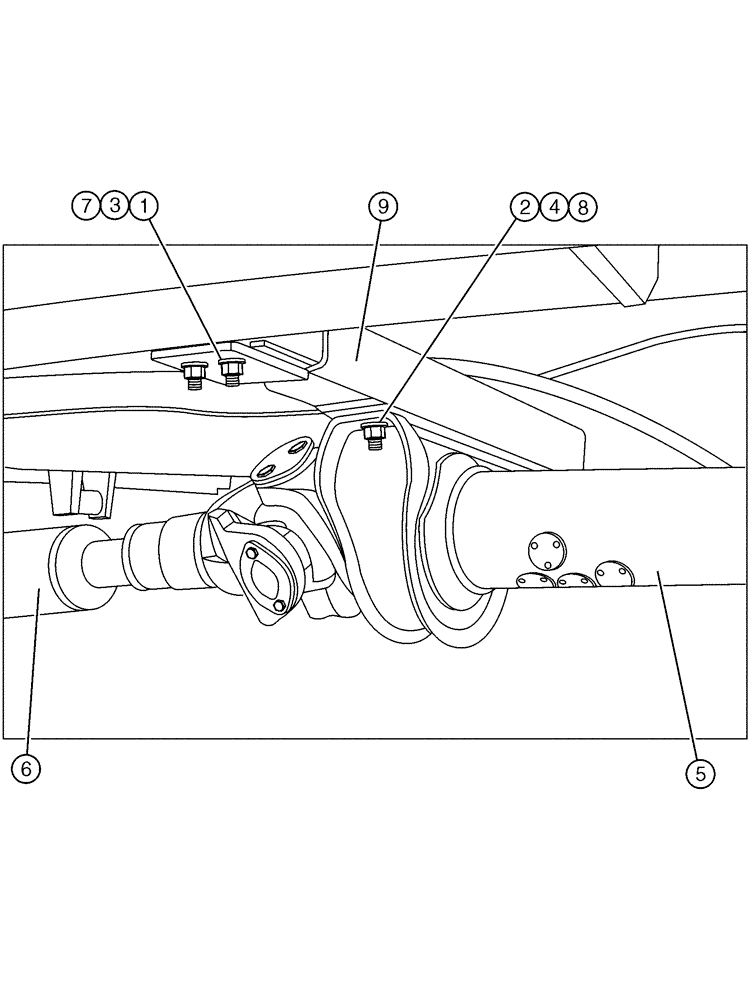

Запчасти Case IH 4375 (03-003) - DRIVELINE (03) - TRANSMISSION

1

BN300358

NUT

M10-1.5, FLN, 8.8

4шт.

2

BN300359

BOLT

M12-1.75, FLN, 8.8

2шт.

3

BN300499

WASHER,M10, 10.9

8шт.

4

BN300500

WASHER,M12, 10.9

4шт.

5

BN302122

DRIVEN SHAFT

Driveline, 1710 W/Hanger

1шт.

5a

BN2294170

U-JOINT SPIDER

4шт.

Service Parts For Ref. 5

1шт.

5b

BN307685

TUBE

And Yoke

1шт.

Service Parts For Ref. 5

1шт.

5c

BN307686

HANGER

1шт.

Service Parts For Ref. 5

1шт.

5d

BN307687

YOKE

End

1шт.

Service Parts For Ref. 5

1шт.

5e

BN307688

WASHER

1шт.

Service Parts For Ref. 5

1шт.

5f

BN307689

NUT

1шт.

Service Parts For Ref. 5

1шт.

6

BN302123

DRIVEN SHAFT

1710 Head Slip

1шт.

6a

BN2294170

U-JOINT SPIDER

4шт.

Service Parts For Ref. 6

1шт.

6b

BN307699

YOKE

Slip

1шт.

Service Parts For Ref. 6

1шт.

6c

BN307700

DUST CAP

1шт.

Service Parts For Ref. 6

1шт.

6d

BN307701

TUBE

Slip

1шт.

Service Parts For Ref. 6

1шт.

7

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

8

86508622

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

9

BN303064

HANGER

Driveline, 3176

1шт.

10

BN55015

NIPPLE, LUBE

NIPPLE Lithium 12-Grade#2, 0.4

1шт.
